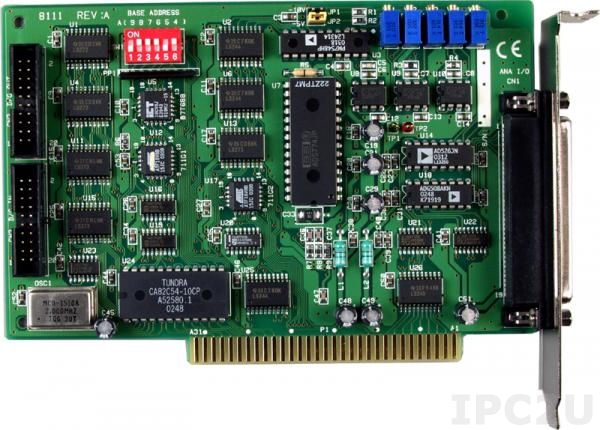

A-8111
ICP DAS
SKU: 01155600
Multifunction Adapter ISA, 8SE ADC, 1 DAC, 16DI, 16DO, Timer
Price on request
Available
Available
System Architecture
System Bus
ISA
Analog Input
Total channels of analog input
8
Single-Ended channels
8
Number of Bits
12 Bit
Sampling rate
35 Hz
Analog Output
Channels of analog input
1
Voltage range
0...5 V, 0...10 V, +/-10 V
Digital Input
Total channels of digital input
16
Type
Wet contact
Level of Logic "0"
0~0.8 V
Level of Logic "1"
2~5 V
Number of channels
3
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
16
Sink/Source
Sink, Source
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Internal Ports
2x20-pin box header
Connectors
DB37 Female
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Gross Weight
0.39 kg
