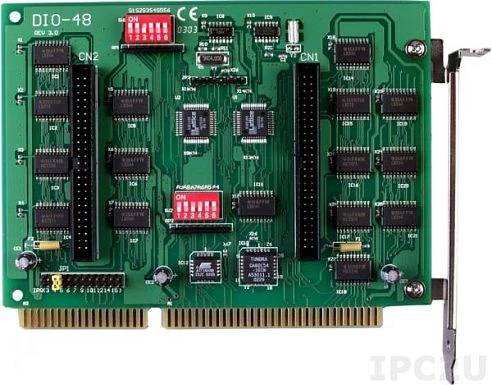

DIO-48
ICP DAS
SKU: 01041400
ISA 48DI/O & 1 Counter/Timer Card
Price on request
Available
Available
System Architecture
System Bus
ISA
Digital Input-Output
Channels of DIO
48
Digital Input
Total channels of digital input
48
Level of Logic "0"
0~0.4 V
Level of Logic "1"
2~5 V
Number of channels
3
Counter capacity
16 Bit
Max frequency
10 kHz
Digital Output
Total channels of digital output
48
Output voltage
0~5 V
Max. load current
0.8 mA
Connectors
Internal Ports
2x50-pin box header
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.12 kg
Gross Weight
0.33 kg
