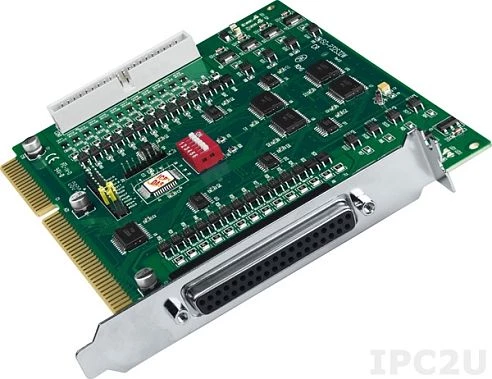

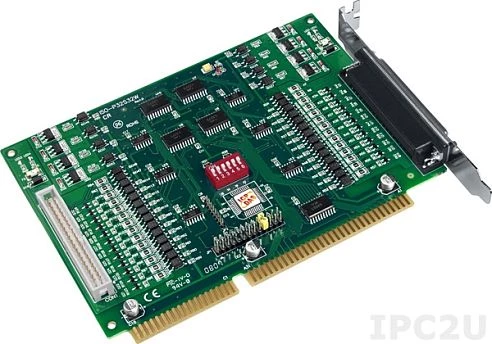

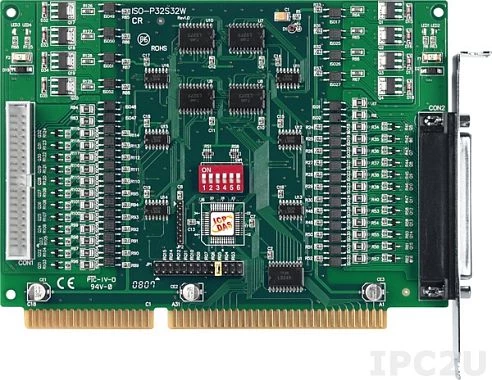

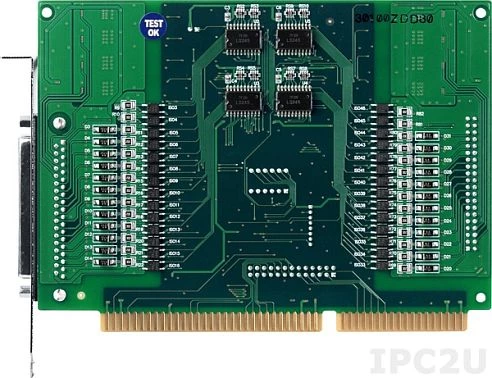

ISO-P32S32W
ICP DAS
SKU: 05632500
ISA Isolated 32DI & 32DO Board, one CA-4037W cable and two CA-4002 D-Sub connectors
Price on request
Available on order
Available on order
System Architecture
System Bus
ISA
Digital Input
Total channels of digital input
32
Isolation of Digital Input
3750 V
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
5~24 V
Digital Output
Total channels of digital output
32
Type
Open collector
Sink/Source
Sink
Output voltage
5~30 V
Max. load current
100 mA
Connectors
Connectors
DB37 Female
Cables
Included Cables
CA-4037W
Software
Operating System Compatibility
Linux kernel 2.6, Windows XP, Windows 7, Windows Vista
Development Software
LabVIEW, BCB, Delphi, VC, VB
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.14 kg
Gross Weight
0.5 kg
