PBC-900J

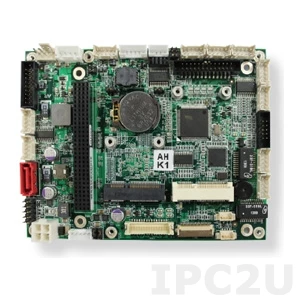

PBC-900J

Arbor
SKU: 06861300
Base Board for COM Express Type 6 Module, Fintek F81866 IO Chipset, VGA/LVDS, 2xGbE LAN, 4xCOM, 2xUSB 2.0, 2xUSB 3.0, 1xKB/MS, Mini-Card slot, PCI/104 slot, 1xmSATA, 1xSATA, 16-bit DIO, Audio, LPT, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express Basic
Construction
Type
Fanless
Chipset
Chipset
Fintek F81866
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
LPT
LPT
Digital Input-Output
Channels of DIO
16
Audio
Audio Controller
Realtek ALC662
Drive interfaces
SATA 2
1
mSATA
1
Extension Slots
Mini-PCIe/Mini Card
1
PCI-104
1
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.4 kg
Gross Weight
0.6 kg
System Architecture
