EmCOMe-i94M0-13600HE
Arbor
SKU: 80036200

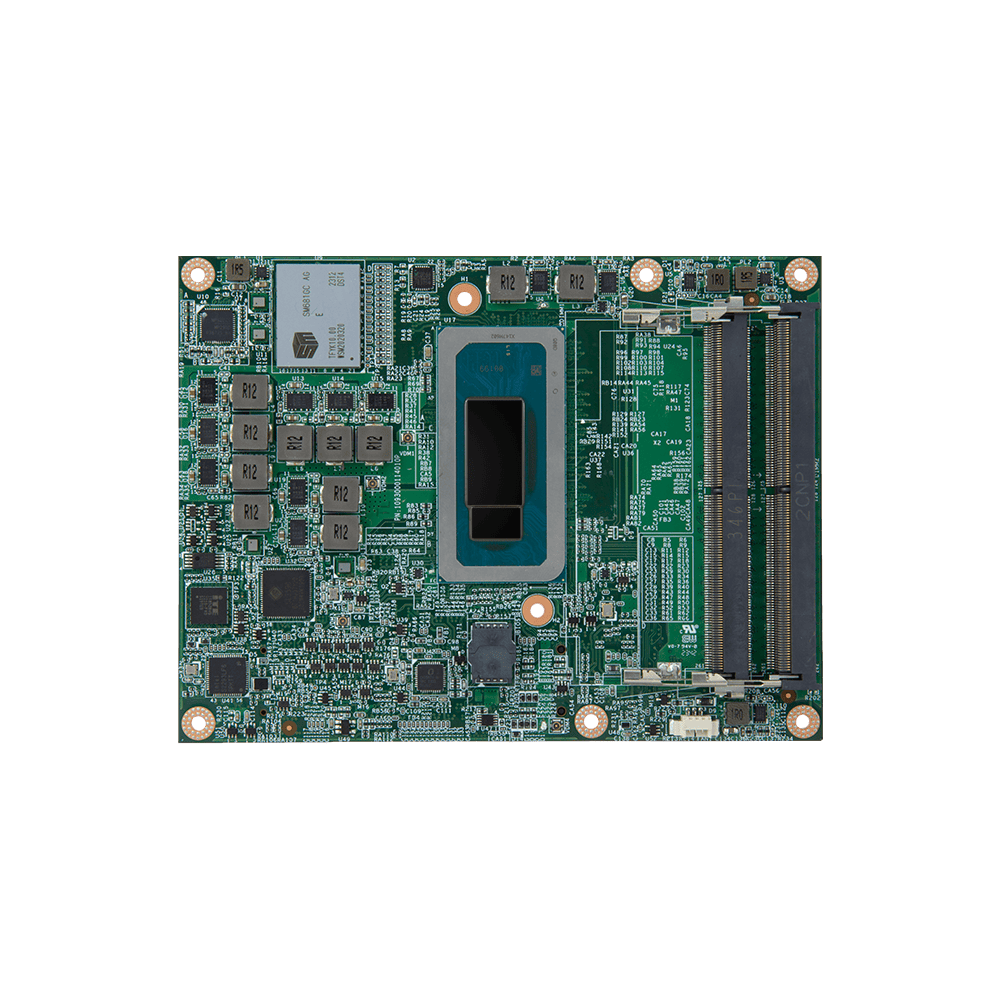

COM Express Type 6 Module, Intel 13th Gen Core i5-13600HE CPU, 2xDDR5 SO-DIMM Socket, 1xNVME BGA SSD Opt., LVDS/3xDDI/VGA, 1x2.5GbE LAN, 2xUART, 8xUSB 2.0, 4xUSB 3.2, 2xSATA 3, GPIO, 8xPCIe x1 Lanes, 2xPCIe x4 Lane, 1xPCIe x8, TPM 2.0, -40..60C
Price on request
Available
Available
System Architecture
Form Factor
COM Express Basic
CPU
СPU Generation/Family
Raptor Lake
Processor Installed
Intel Core i5-13600HE
Socket
FCBGA1744
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, VGA, 3xDDI
Ethernet
Controller Type
Intel i226
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
COM Total
2
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
Extension Slots
PCI Express x8
1
PCI Express x4
2
PCI Express x1
8
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.3 kg
Gross Weight
0.45 kg
