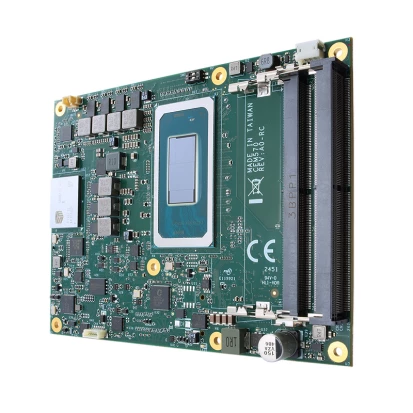

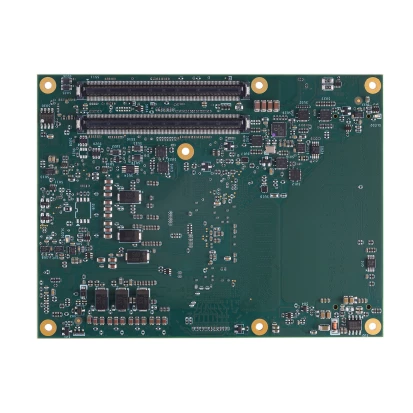

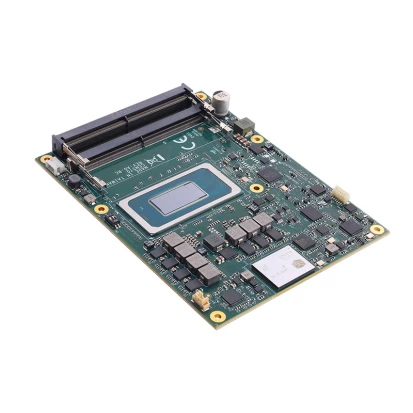

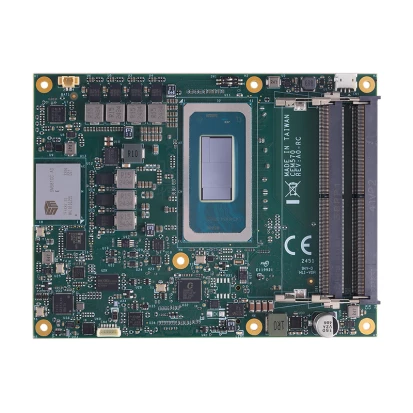

CEM570-U7-155H

CEM570-U7-155H

AXIOMTEK
SKU: 80084900
COM Express Type 6 Module, Intel Core Ultra 7 155H CPU, Up to 96GB DDR5 RAM, Up to 1TB NVME, LVDS/3xDDI, 1x2.5GbE LAN, 4xUSB 3.2, 8xUSB 2.0, LPC/SPI/SMBus/I2C, 8-bit GPIO, Audio, 2xSATA, Up to 1xPCIe x8 + 8xPCIe x1
Price on request
Available
Available
System Architecture
Form Factor
COM Express Basic
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 7 155H
Socket
FCBGA2049
Max CPU frequency
4.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, 3xDDI
Ethernet
Controller Type
Intel i226
Total Ethernet
1
2,5 Gbit/s
1
Interfaces
USB Total
12
USB 2.0
8
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
2
M.2
1
Extension Slots
Total
9
PCI Express x8
1
PCI Express x1
8
Additional Functions
Watchdog timer type
Software
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
125 mm
Length
95 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.2 kg
Gross Weight
0.28 kg
