COMX-A300-Series

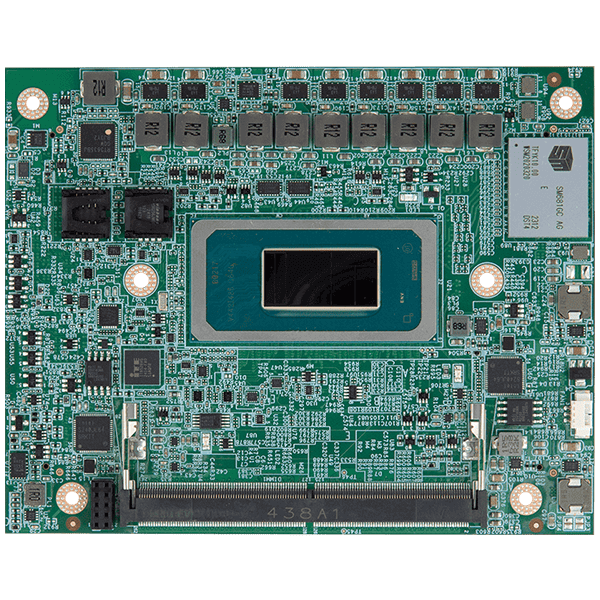

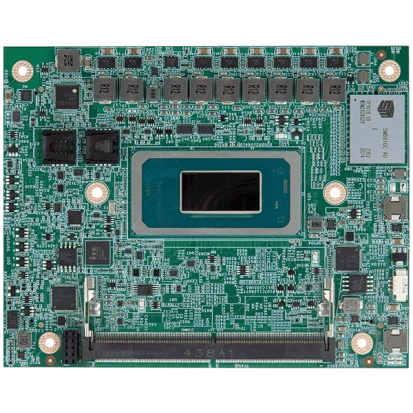

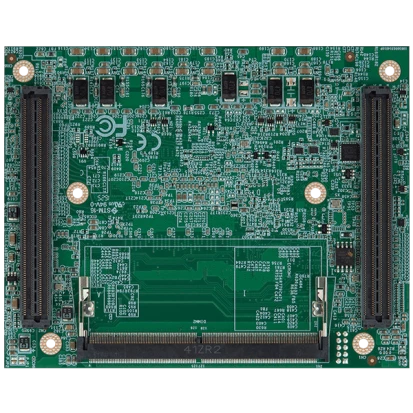

COMX-A300-Series

Arbor
SKU: 80200800
COM-HPC Client Size-A Module, Intel 1/2nd Gen Core Ultra 7/5 CPU, Up to 96GB DDR5 RAM, eDP/3xDDI, 2x2.5GbE LAN, 2xUART, 2xUSB 4, 2xUSB 3.2, 8xUSB 2.0, 2xSATA 3, 16-bit GPIO, 1xPCIe x8 Lanes, 3xPCIe x4 Lanes, 8xPCIe x1 Lanes, TPM 2.0
Price on request
Available
Available
System Architecture
Form Factor
COM-HPC CPU Module
CPU
СPU Generation/Family
Meteor Lake, Arrow Lake
CPU Support Type
Core Ultra 5, Core Ultra 7
Socket
FCBGA2049
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
96 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
3xDDI, eDP
Ethernet
Controller Type
Intel i226-LM
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
USB Total
12
USB 2.0
8
USB v3.x
2
USB v4
2
Digital Input-Output
Channels of DIO
12
Drive interfaces
SATA 3
2
Extension Slots
Total
12
PCI Express x8
1
PCI Express x4
3
PCI Express x1
8
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xSATA 3, USB 2.0, GPIO, USB 3.0, 40-pin eDP
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Ubuntu 20.04, Windows 11 IoT Enterprise
Dimensions and weight
Width
120 mm
Length
95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-95%
Dimensions
Net Weight
0.3 kg
Gross Weight
0.45 kg
