EmNANO-i2800-Series

EmNANO-i2800-Series

Arbor
SKU: 80058200

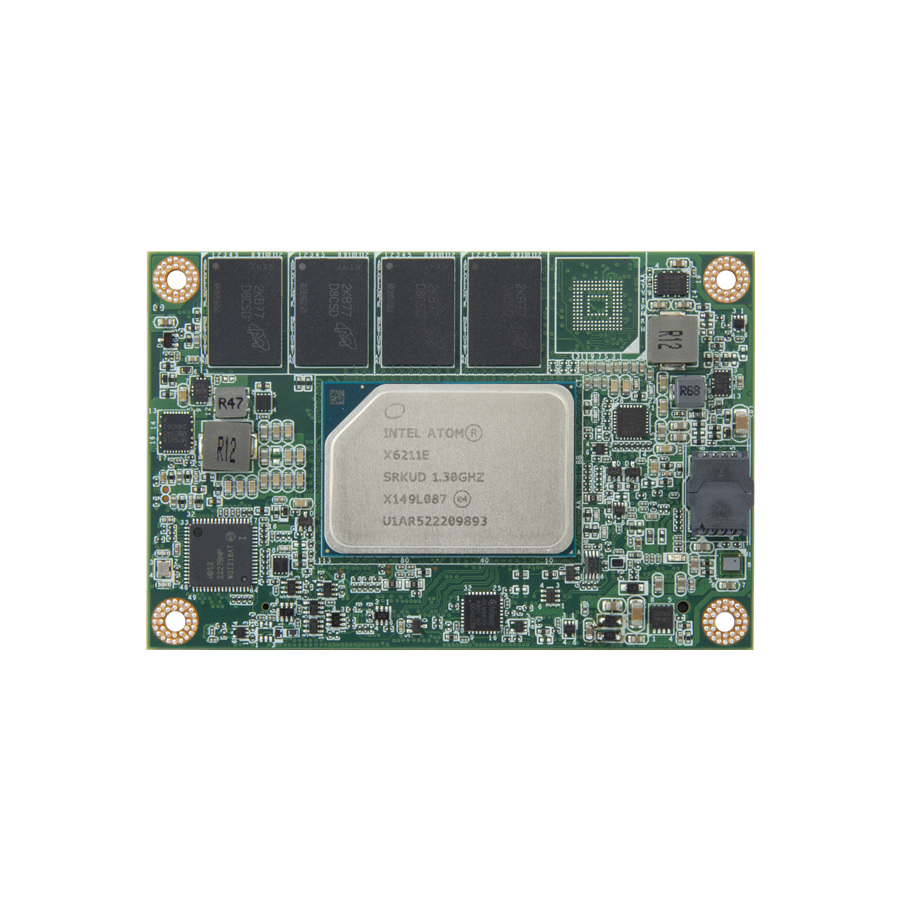

COM Express Type 10 Module, Intel Atom x6413E/x6211E CPU, Up to 8GB LPDDR4 RAM, LVDS, 1xDDI, 1x2.5GbE LAN, 2xUSB 3.2, 8xUSB 2.0, 2xSATA 3, 4xPCIe x1, Audio, TPM 2.0, 5/12VDC-in, -40..85C
Price on request
Available
Available
Backplane
Price with VAT
Price on request
CPU Board
Price on request
Price on request
CPU Cooler
Price on request
Price on request
Cable Set 1
Price on request
Backplane
Price with VAT
Price on request
CPU Board
Price on request
Price on request
CPU Cooler
Price on request
Price on request
Cable Set 1
Price on request
System Architecture
Form Factor
COM Express Mini
CPU
СPU Generation/Family
Elkhart Lake
CPU Support Type
Atom
Socket
FCBGA1493
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
ECC
No
Maximum Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, DDI
Ethernet
Controller Type
Intel i210
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
10
USB 2.0
8
USB v3.x
2
Drive interfaces
SATA 3
2
Extension Slots
PCI Express x1
4
Software
Operating System Compatibility
Ubuntu, Windows 10, Windows 11
Dimensions and weight
Width
84 mm
Length
55 mm
Operating Conditions
Operating Temperature
-40..85 °C
Humidity
10-95%
Dimensions
Net Weight
0.3 kg
Gross Weight
0.5 kg
System Architecture
