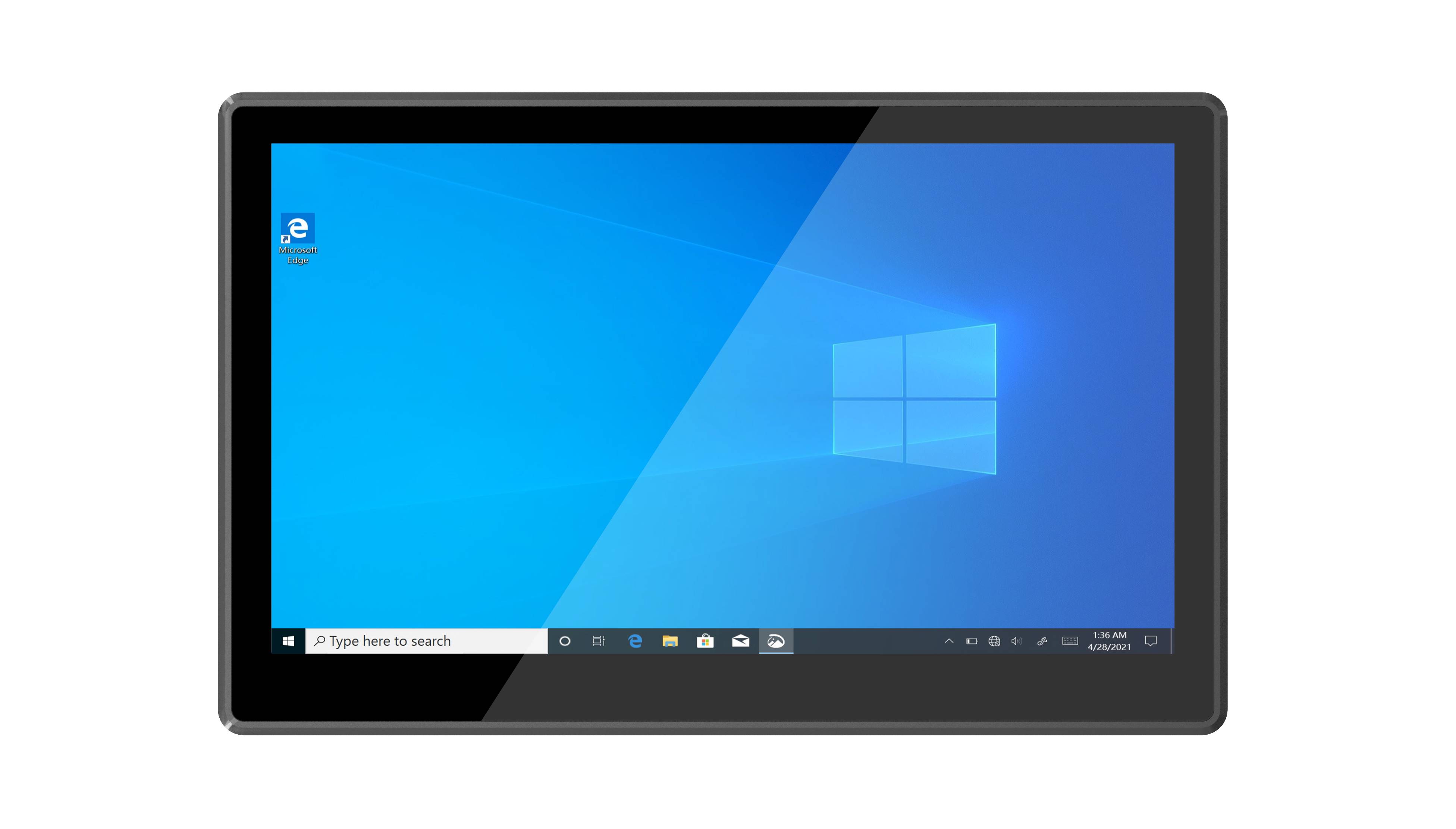

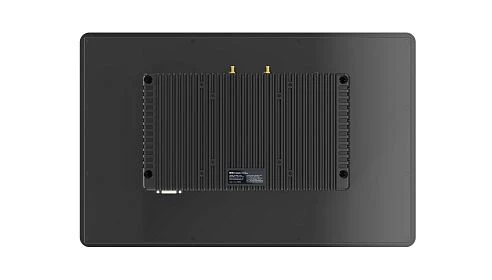

P15J-M
ONERugged
SKU: 57811500
15.6" Fanless Panel PC, IP65 Front, PCAP Touch, 1920x1080, 220 cd/m2, Intel Celeron N5100 CPU, 8GB DDR4 RAM, 128GB M.2 SSD, HDMI, 2xGbE LAN, 2xUSB 3.0, 2xUSB 2.0, 2xRS232, Audio, WiFi/BT5.0, 12VDC-in Power Jack, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall VESA 100, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD IPS
Diagonal
15.6 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
220 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Jasper Lake
Processor Installed
Intel Celeron N5100
Socket
CPU onboard
Max CPU frequency
2.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Interfaces
COM Total
2
RS-232
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
M.2
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45 Ethernet, 4xUSB, Line In, Line Out, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
388.63 mm
Height
248.43 mm
Depth
54.95 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
2.4 kg
Gross Weight
2.9 kg
