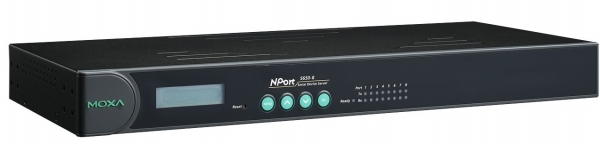

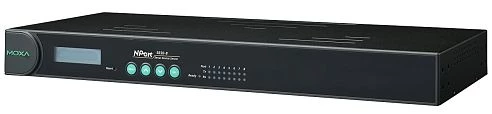

1U 8-Port RS-232/422/485 Rackmount Serial Device Server, -40...+75
NPort 5650-8-T
MOXA
SKU: 05954400
Price on request
Available on order
Available on order
NPort 5650-8-T
Industrial interface server NPort 5650-8-T by MOXA transfers data packets from different devices with RS-232/422/485 interfaces by means of Ethernet or wireless connection with the rate up to 921600 bit/s. The programmable server NPort 5650-8-T in a robust metal housing with 1 Ethernet port and 8 RS-232 COM-ports. The device is available in a 19” rack mounting configuration. It works with protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The operation mode can be adjusted by means of Telnet, an embedded display and a keyboard, or a Web-interface. This device is compatible with all widespread operating systems and works within an extended temperature range of -40 ... 75°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232/422/485
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
-40..75 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.33 kg
