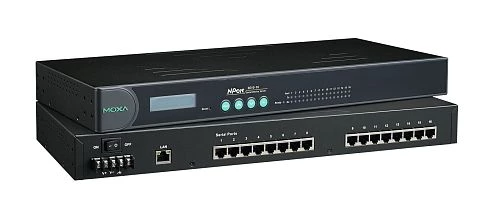

NPort 5610-16
MOXA
SKU: 02187500
16-port RS-232 Serial Device Server
Price on request
Available
Available
Serial interface server NPort 5610-16 is produced by MOXA to transmit data packets from serial equipment by means of Ethernet or Wi-Fi (transfer rate up to 921600 bit/s). The programmable server NPort 5610-16 is provided in a robust metal housing that includes 1 Ethernet port and 16 RS-232 ports. The 19” rack mounting configuration is available for this device. The server allows interacting with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. You can configure the server using Telnet, an embedded display and a keyboard, or a Web-interface. The device is compatible with all widespread operating systems. The server secures stable operation at temperatures ranged 0 ... 55°C.
Serial interface server NPort 5610-16 is produced by MOXA to transmit data packets from serial equipment by means of Ethernet or Wi-Fi (transfer rate up to 921600 bit/s). The programmable server NPort 5610-16 is provided in a robust metal housing that includes 1 Ethernet port and 16 RS-232 ports. The 19” rack mounting configuration is available for this device. The server allows interacting with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. You can configure the server using Telnet, an embedded display and a keyboard, or a Web-interface. The device is compatible with all widespread operating systems. The server secures stable operation at temperatures ranged 0 ... 55°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
16
RS-232
16
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.34 kg
