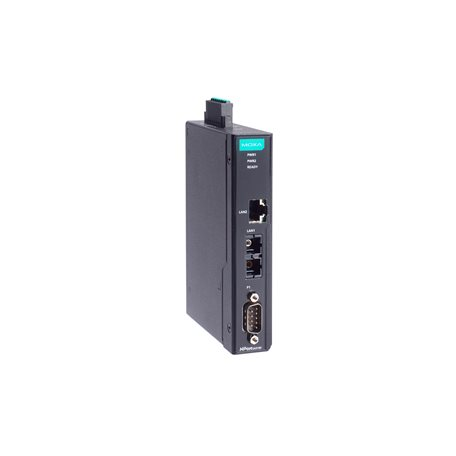

NPort IA5150-M-SC-G2
MOXA
SKU: 80238900
Serial Device Server, IP30, 1xRS-232/422/485, 1x10/100Base-TX, 1xMulti-SC, 1.5KV, 12..48 VDC, Operating Temperature -10..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, LLDP, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS, SSH2
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
2889487 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
89 mm
Height
129 mm
Standards and Certifications
Certifications
CE, FCC
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
0.4 kg
Gross Weight
0.7 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, LLDP, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS, SSH2
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
2889487 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
89 mm
Height
129 mm
Standards and Certifications
Certifications
CE, FCC
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
0.4 kg
Gross Weight
0.7 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, LLDP, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS, SSH2
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
2889487 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
89 mm
Height
129 mm
Standards and Certifications
Certifications
CE, FCC
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
0.4 kg
Gross Weight
0.7 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
RJ-45
Fiber
Number of Optical Ports
2xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, LLDP, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS, SSH2
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
2889487 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
89 mm
Height
129 mm
Standards and Certifications
Certifications
CE, FCC
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
0.4 kg
Gross Weight
0.7 kg
