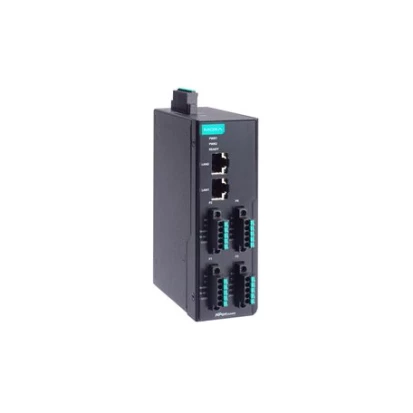

NPort IA5450I-TB-G2
MOXA
SKU: 80239300
Serial Device Server, IP30, 4xRS-232/422/485, 4x5-pin TB, 2x10/100Base-TX, 2KV, 12..48 VDC, Operating Temperature -10..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Type 10/100 Mbit/s
RJ-45
Interfaces
COM Total
4
RS-232/422/485
4
Isolation of COM Ports
2 kV (RS-232/422/485)
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, LLDP, UDP, DNS, TCP/IP, SNTP, ARP, DHCP Client, ICMP
Security Protocols
HTTPS, SSH2
LED / Controls
LED
10/100M LED, READY LED, PWR1, PWR2
Setup of Operation Mode
Telnet, Console Port, Web-interface
Controls
1xReset
Connectors
Connectors
DC input (terminal block)
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
5-95%
MTBF
2208607 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
42 mm
Depth
89 mm
Height
129 mm
Standards and Certifications
Certifications
CE, FCC
EMI
CISPR 32, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Oil And Gas
Class I Div.2 Groups A, B, C, D, ATEX Zone 2 Ex nC IIC
Safety
UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-64
Dimensions
Net Weight
0.5 kg
Gross Weight
0.8 kg
