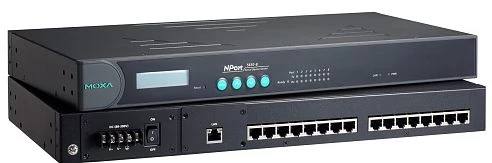

NPort 5610-8-48V
MOXA
SKU: 02187400
8-port RS-232 Serial Device Server, 48VDC Power Input
Price on request
Available
Available
Industrial serial interface server NPort 5610-8-48V in the standard design by MOXA transfers information from various equipment with RS-232 interfaces over Ethernet or Wi-Fi at the speed up to 921600 bit/s. 8 RS-232 ports and 1 Ethernet port are located on a server metal housing. It can be mounted on a 19” rack. The server enables interaction with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. It is possible to adjust the device using Telnet, an embedded display and a keyboard, or a Web-interface. The server is compatible with all basic operating systems. The device server from MOXA ensures stable operation within a wide temperature range.
Industrial serial interface server NPort 5610-8-48V in the standard design by MOXA transfers information from various equipment with RS-232 interfaces over Ethernet or Wi-Fi at the speed up to 921600 bit/s. 8 RS-232 ports and 1 Ethernet port are located on a server metal housing. It can be mounted on a 19” rack. The server enables interaction with popular protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. It is possible to adjust the device using Telnet, an embedded display and a keyboard, or a Web-interface. The server is compatible with all basic operating systems. The device server from MOXA ensures stable operation within a wide temperature range.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xRJ-45
Interfaces
COM Total
8
RS-232
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
10/100M LED, READY LED, COM-ports LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage DC
20..72 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.12 kg
