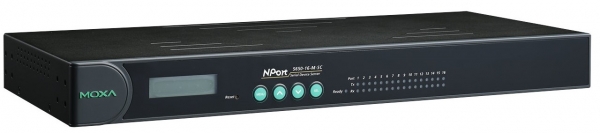

NPort 5650-16-M-SC
MOXA
SKU: 03351100
1U 16-Port RS-232/422/485 Rackmount Serial Device Server, 1x100 Base-FX (Multi Mode, SC Connector)
Price on request
Available
Available
Serial interface server NPort 5650-16-M-SC is designed by MOXA in order to transmit data packets from various serial devices via Ethernet or Wi-Fi at the speed up to 921600 bit/s. The programmable device server NPort 5650-16-M-SC has a robust housing with 1 Ethernet port and 16 RS-232/422/485 ports. The device can be mounted in a 19” rack. The server works with key protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The operation mode can be set up by means of Telnet, an embedded display and a keyboard, or a Web-interface. The server is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. The server is capable of stable operation at temperatures ranged 0 ... 55°C.
Serial interface server NPort 5650-16-M-SC is designed by MOXA in order to transmit data packets from various serial devices via Ethernet or Wi-Fi at the speed up to 921600 bit/s. The programmable device server NPort 5650-16-M-SC has a robust housing with 1 Ethernet port and 16 RS-232/422/485 ports. The device can be mounted in a 19” rack. The server works with key protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The operation mode can be set up by means of Telnet, an embedded display and a keyboard, or a Web-interface. The server is compatible with the following operating systems: Linux kernel 2.6, Windows CE 5.0, Windows CE 6.0, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows XP, Windows XP Embedded, Windows 7, Windows 8, Linux kernel 2.4, Linux kernel 3.x, Windows 95, Windows 98, Windows ME, Windows NT, Windows 2000, Windows Vista, Windows 8.1, Unix, Open Server, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, Windows Server 2008 SP2. The server is capable of stable operation at temperatures ranged 0 ... 55°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xSC
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
multi-mode
Interfaces
COM Total
16
RS-232/422/485
16
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.34 kg
