NPort 5650-8-S-SC
MOXA
SKU: 03351000
1U 8-Port RS-232/422/485 Rackmount Serial Device Server, 1x100 Base-FX (Single Mode, SC Connector)
Price on request
Available
Available

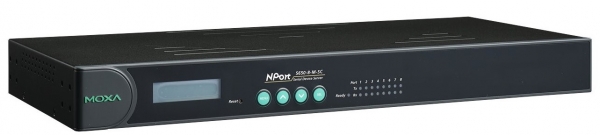

Industrial interface server NPort 5650-8-S-SC in the standard design is manufactured by MOXA to transmit data from equipment with serial interfaces by means of Ethernet or Wi-Fi at the speed of 921600 bit/s. The fanless metal housing of the programmable server features 1 Ethernet port and 8 RS-232/422/485 ports. The server is available in a 19” rack mounting configuration. It provides interaction with protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The operation mode is configured by means of Telnet, an embedded display and a keyboard, or a Web-interface. This device is compatible with all standard operating systems. The server secures stable operation within a temperature range of 0 ... 55°C.
Industrial interface server NPort 5650-8-S-SC in the standard design is manufactured by MOXA to transmit data from equipment with serial interfaces by means of Ethernet or Wi-Fi at the speed of 921600 bit/s. The fanless metal housing of the programmable server features 1 Ethernet port and 8 RS-232/422/485 ports. The server is available in a 19” rack mounting configuration. It provides interaction with protocols: SNTP, SMTP, BootP, HTTP, Telnet, ICMP, TCP, UDP, DHCP, DNS, SNMP V1, using Telnet, ARP, PPP, SLIP, RFC2217. The operation mode is configured by means of Telnet, an embedded display and a keyboard, or a Web-interface. This device is compatible with all standard operating systems. The server secures stable operation within a temperature range of 0 ... 55°C.
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xSC
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
single-mode
Interfaces
COM Total
8
RS-232/422/485
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.36 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xSC
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
single-mode
Interfaces
COM Total
8
RS-232/422/485
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.36 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xSC
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
single-mode
Interfaces
COM Total
8
RS-232/422/485
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.36 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Type 10/100 Mbit/s
1xSC
Fiber
Number of Optical Ports
1xSC
Type of Fibre Optic
single-mode
Interfaces
COM Total
8
RS-232/422/485
8
Supported Protocols
Managment Protocols
SMTP, HTTP, Telnet, UDP, DNS, DHCP, SNTP, BootP, ARP, TCP, SNMP V1, Rtelnet, RFC2217, NTP Client, ICMP
Security Protocols
PPP
LED / Controls
LED
READY LED, COM-ports LED, LNK/ACT LED
Setup of Operation Mode
Telnet, Buttons for Setting up and Displaying Status, Web-interface
Controls
On/Off, 1xReset, Control Buttons
System Power Input
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Dimensions and weight
Width
440 mm
Depth
198 mm
Height
45 mm
Standards and Certifications
Certifications
CE, FCC, EN 60601
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 55011
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.53 kg
Gross Weight
3.36 kg
