NSM-208PSE-24V

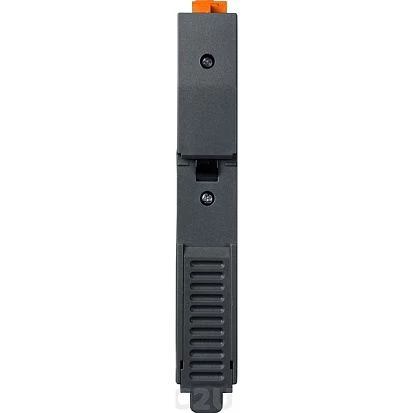

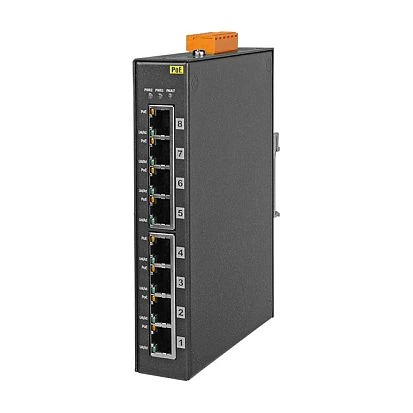

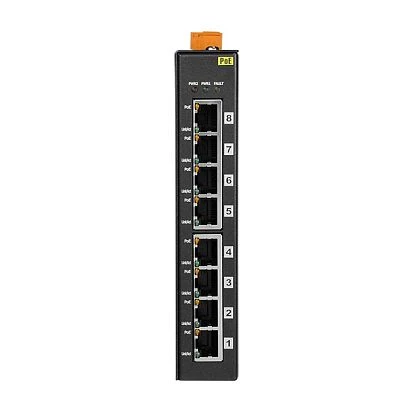

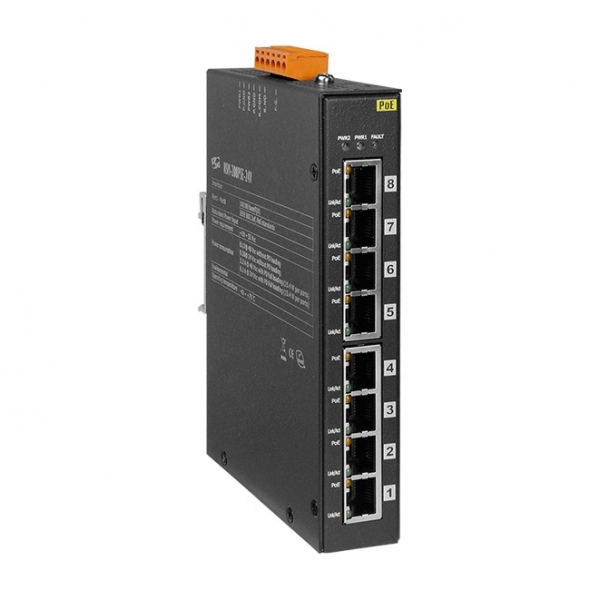

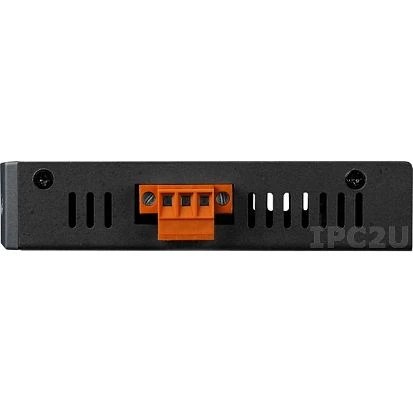

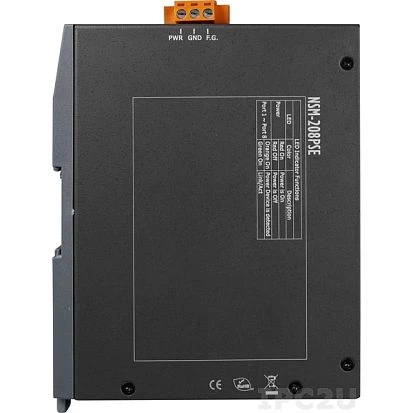

NSM-208PSE-24V

ICP DAS
SKU: 06620200
Industrial Smart Ethernet Switch with 8 10/100 Base-T Ports, Wide Temperature Range, IP30, 24VDC in
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
PoE 10/100 Mbit/s
8
Switch Properties
Managed
No
Switch Level
Layer 2
System Power Input
Input Voltage DC
18..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
28 mm
Depth
120 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.62 kg
Gross Weight
0.72 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
PoE 10/100 Mbit/s
8
Switch Properties
Managed
No
Switch Level
Layer 2
System Power Input
Input Voltage DC
18..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
28 mm
Depth
120 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.62 kg
Gross Weight
0.72 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
PoE 10/100 Mbit/s
8
Switch Properties
Managed
No
Switch Level
Layer 2
System Power Input
Input Voltage DC
18..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
28 mm
Depth
120 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.62 kg
Gross Weight
0.72 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
PoE 10/100 Mbit/s
8
Switch Properties
Managed
No
Switch Level
Layer 2
System Power Input
Input Voltage DC
18..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
28 mm
Depth
120 mm
Height
160 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.62 kg
Gross Weight
0.72 kg
Documentation
NSM-208PSE-24V Datasheet NSM-208PSE-24V Usermanual
Documentation
NSM-208PSE-24V Datasheet NSM-208PSE-24V Usermanual
Documentation
NSM-208PSE-24V Datasheet NSM-208PSE-24V Usermanual
Documentation
NSM-208PSE-24V Datasheet NSM-208PSE-24V Usermanual
