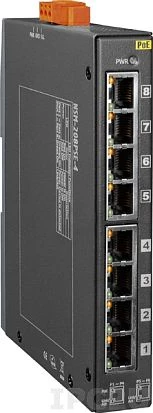

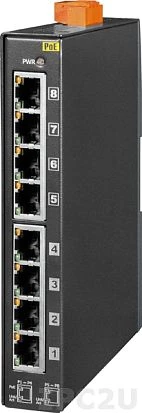

NSM-208PSE-4
ICP DAS
SKU: 05841200
Industrial Smart Ethernet Switch with 8 10/100 Base-T Ports, Wide Temperature Range, IP20
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
25 mm
Depth
119 mm
Height
168 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.5 kg
Gross Weight
0.6 kg
