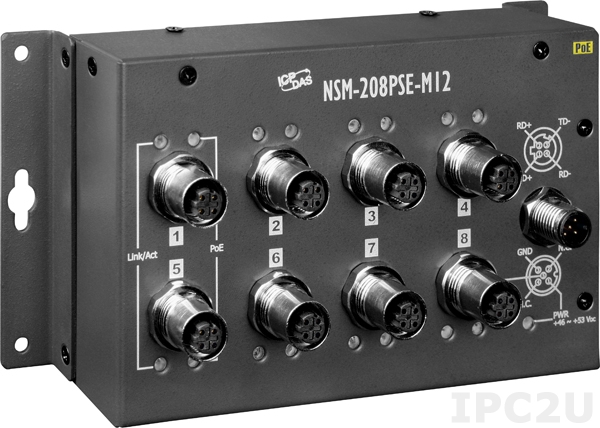

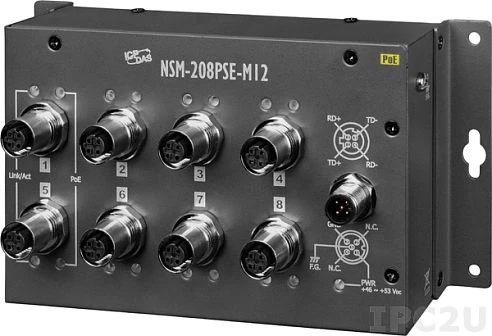

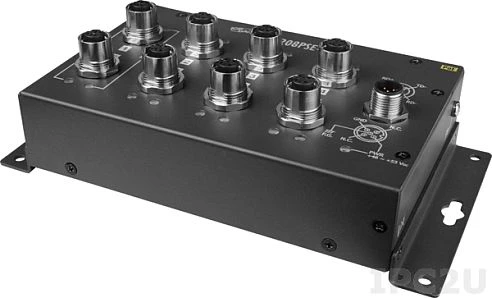

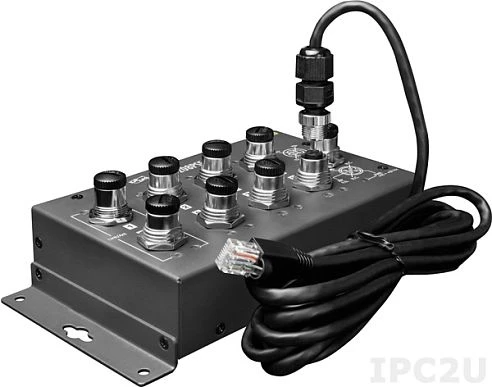

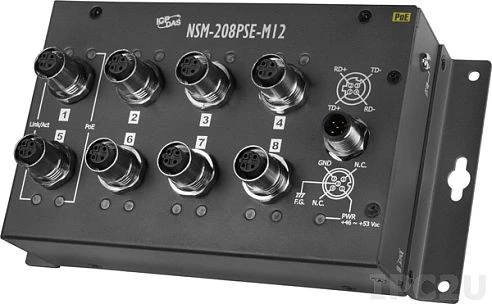

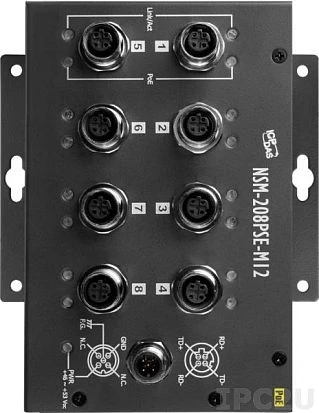

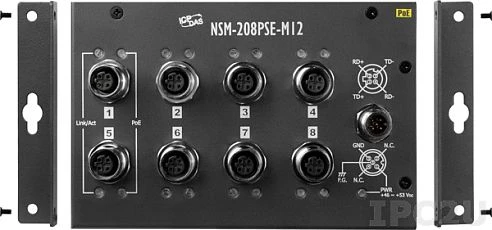

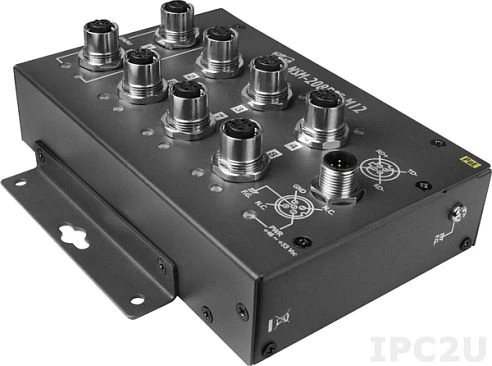

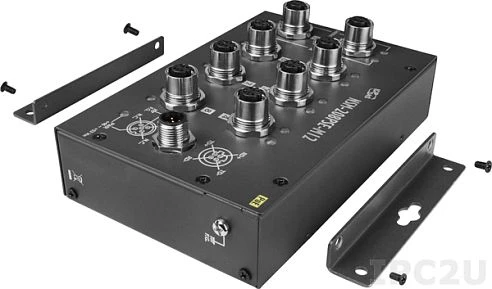

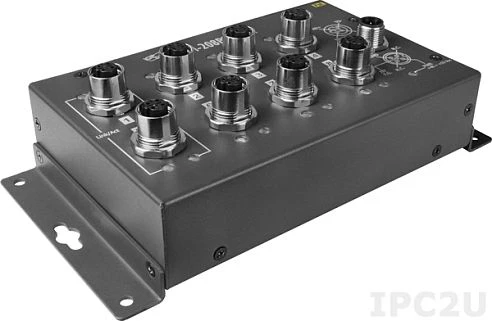

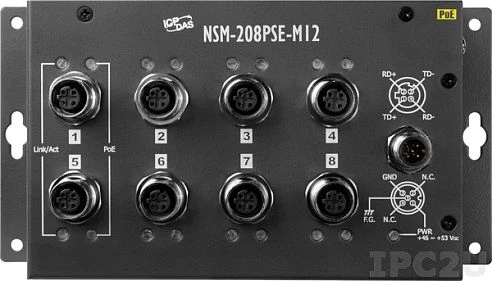

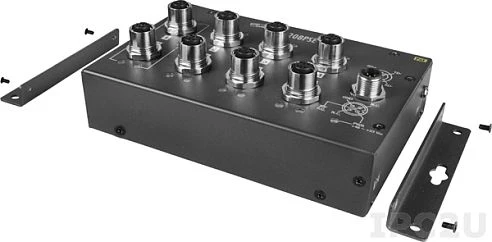

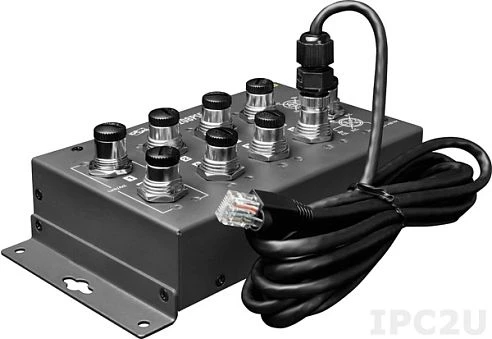

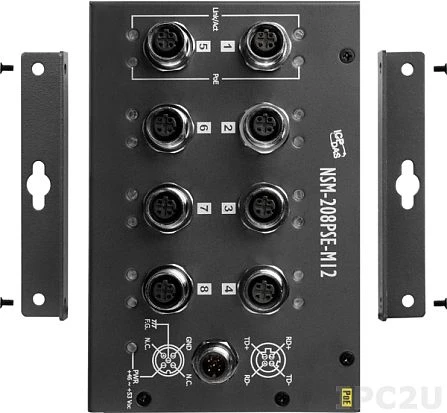

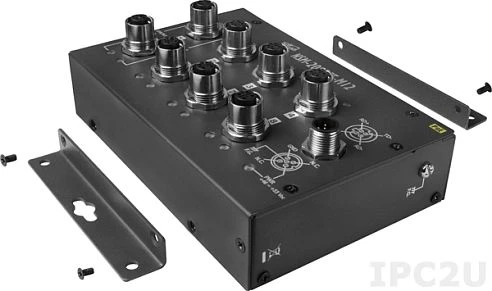

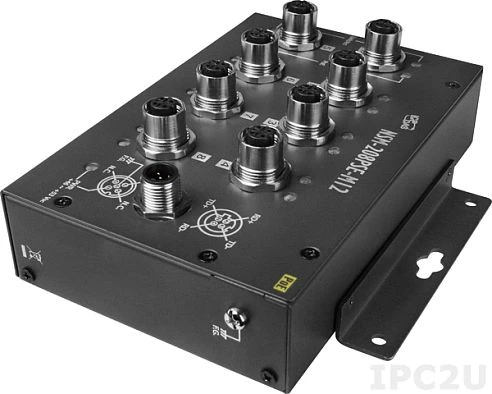

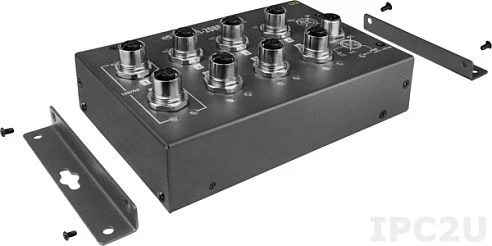

NSM-208PSE-M12

ICP DAS
SKU: 06040900
Industrial Smart Ethernet Switch with 8 10/100 Base-T Ports, Wide Temperature Range, M12 connectors, IP40
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xM12
PoE 10/100 Mbit/s
8
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
46..53 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
190 mm
Depth
56 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC
Rolling Stock
EN 50155
Dimensions
Gross Weight
0.6 kg
