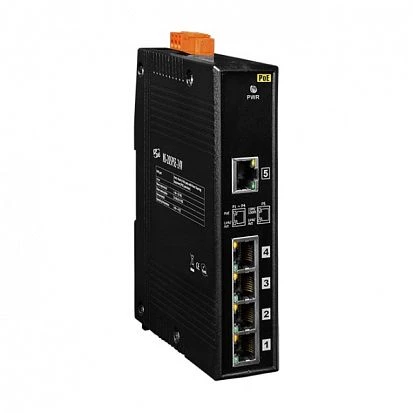

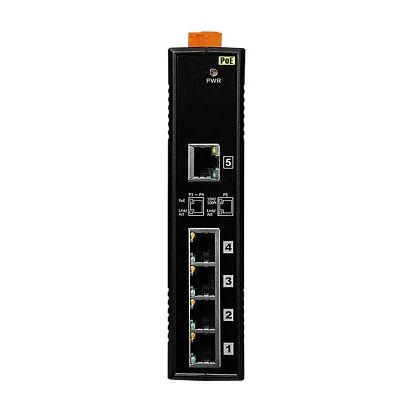

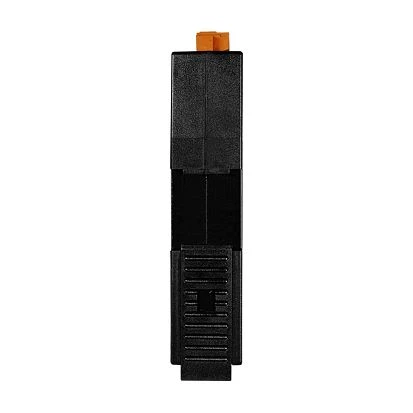

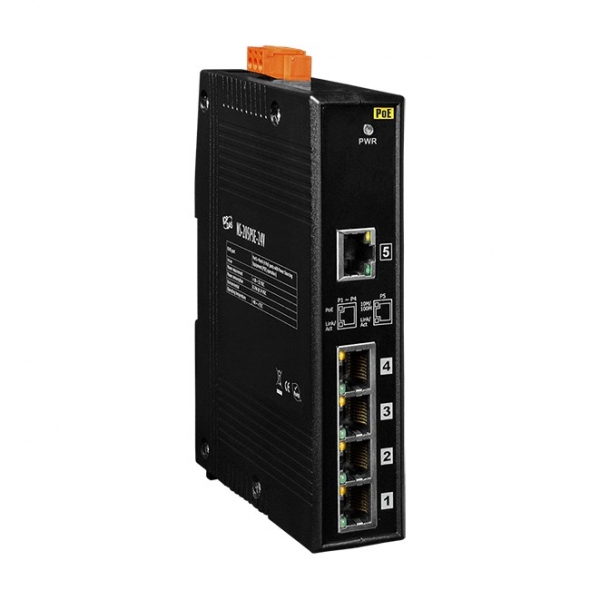

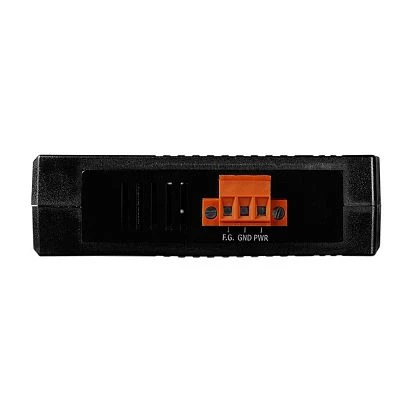

NS-205PSE-24V
ICP DAS
SKU: 05709000
Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch 24 VDC Input
Price on request
Available on order
Available on order
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
5xRJ-45
PoE 10/100 Mbit/s
4
Switch Properties
Managed
No
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
18..32 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
31 mm
Depth
113 mm
Height
157 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, WEEE, FCC
Dimensions
Net Weight
0.27 kg
Gross Weight
0.36 kg
