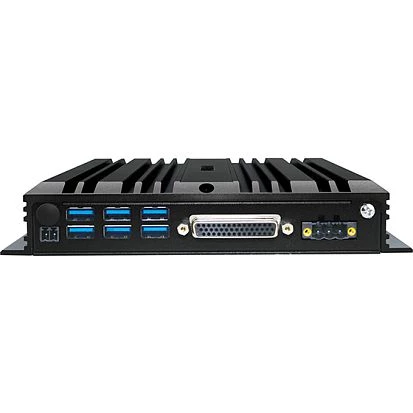

NISE-70
NEXCOM
SKU: 09137200
Fanless Embedded System, Intel 11th Gen Celeron/i5/i7 CPU, 1xDDR4 3200MHz SO-DIMM up to 32GB RAM, 4xHDMI, 3xGbE LAN, 2xCOM, 4xUSB, 4xGPI, 4xGPO, 1xMiniPCIe, 1xM.2, 12..24VDC-in, -5..55C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel WGI219LM 10/100/1000 Mbps, Intel i210
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232
2
RS-232/422/485
1
USB Total
4
USB 2.0
1
USB v3.x
3
Drive interfaces
mSATA
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
3xRJ45 Ethernet, 1xUSB, 3xUSB, DC input (terminal block), 2xDB9 Male, 4xHDMI
System Power Input
Input Voltage DC
12..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
60 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
198.8 mm
Height
37.7 mm
Depth
150.4 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
With mSATA and M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
With mSATA and M.2: Half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.85 kg
Gross Weight
1.4 kg
