NISE-70-T04
NEXCOM
SKU: 10778700

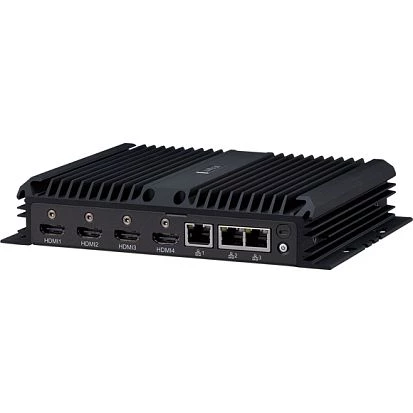

Fanless Embedded System NISE70-T04, Intel Core i5-1145G7E with 15W TDP limit CPU, up to 32GB DDR4 RAM SO-DIMM, 4xHDMI, 3xGbE LAN, 2xCOM, 4xUSB, 1xM.2 2242/3042 Key B/M, 1xMiniPCIe, 12..24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1145G7E
Socket
FCBGA 1449
Max CPU frequency
4.1 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
4xHDMI
Ethernet
Controller Type
Intel i211, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232
1
RS-422/485
1
USB Total
4
USB 2.0
1
USB v3.x
3
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M, 3042 B
Mini-PCIe/Mini Card
1
LED / Controls
Controls
On/Off
Connectors
Connectors

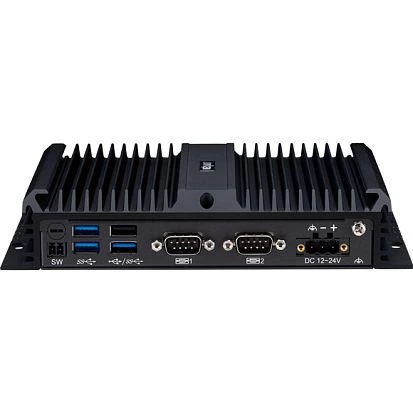

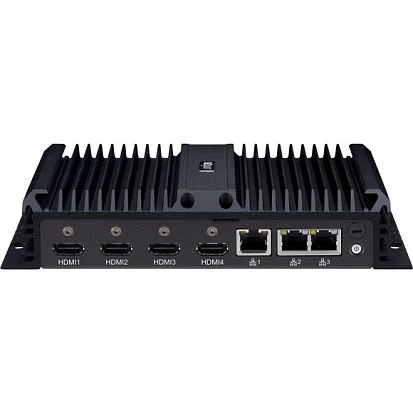

3xRJ45 Ethernet, 4xUSB, DC input (terminal block), 2xDB9 Male, 4xHDMI
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
198.8 mm
Height
37.7 mm
Depth
150.4 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-95%
Vibration
With mSATA and M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64; Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
With mSATA and M.2: Half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.85 kg
Gross Weight
1.4 kg
