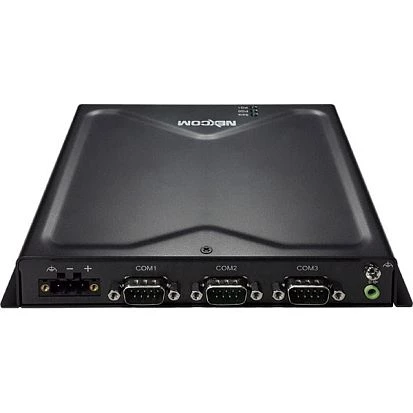

NISE-50
NEXCOM
SKU: 07165700
Fanless Embedded System NISE-50, Intel Atom E3826 1.46GHz CPU, 2GB DDR3L RAM, 16GB eMMC, HDMI, 2xGbE LAN, 2xRS232, 1xRS422/485, 4xUSB 2.0, 3xMiniPCIe, 24VDC-in w/o Power Adapter
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3826
Socket
FCBGA1170
Max CPU frequency
1.46 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
Soldered
ECC
No
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
4
USB 2.0
4
Drive interfaces
mSATA
1
Installed drive
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
3
Mini-PCIe/Mini Card
3
SIM Card slots
Yes, 1
LED / Controls
Controls
On/Off
Connectors
Connectors
3xDB9, HDMI, 2xRJ45, 4xUSB, Line Out, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows Embedded Standard 8, Ubuntu
Dimensions and weight
Width
162 mm
Height
26 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL/cUL
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.3 kg
Gross Weight
1.8 kg
