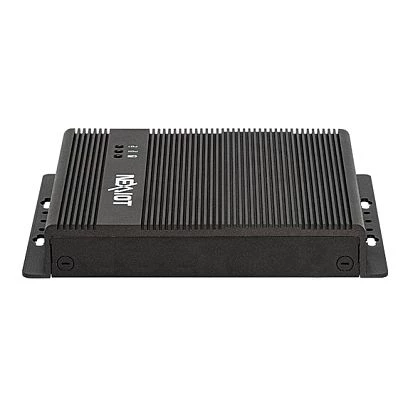

NISE-50-A04-02
NEXCOM
SKU: 80091700
Fanless Embedded System NISE50 A04-02, Intel N-Series N97 CPU, up to 16GB DDR5 RAM SO-DIMM, M.2 2242/2280 Key-B (SATA) SSD Slot, 1xHDMI, 3x2.5GbE LAN, 1xCOM, 2xUSB 3.x, TPM2.0, +12/+24VDC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i226V, Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2280 B, 2242 B
LED / Controls
LED
Battеry Status
Controls
On/Off
Connectors
Connectors

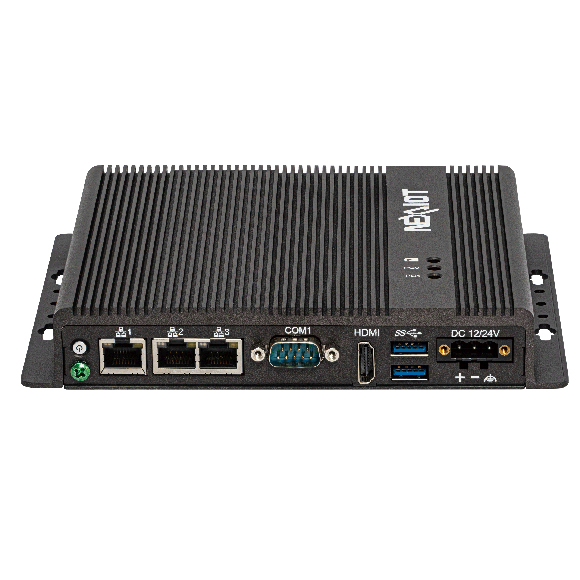

DB9, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
186 mm
Height
28 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.9 kg
Gross Weight
1.4 kg
