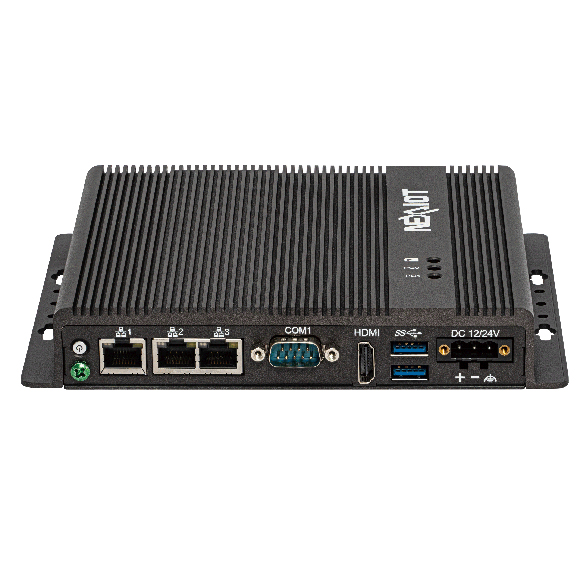

NISE-50-A04-01
NEXCOM
SKU: 80091600
Fanless Embedded System NISE50 A04-01, Intel Atom x7433RE 1.5GHz CPU, up to 32GB DDR5 RAM SO-DIMM, M.2 2242/2280 Key-B (SATA) SSD Slot, 1xHDMI, 3x2.5GbE LAN, 2xCOM, 2xUSB 3.x, TPM2.0, +12/+24VDC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i226V, Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
2
USB v3.x
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2230 E, 3052 B, 3042 B, 2280 B, 2242 B
LED / Controls
LED
Battеry Status
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 3xRJ45 Ethernet, 2xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
186 mm
Height
28 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.9 kg
Gross Weight
1.4 kg
