NISE-4300-6100U

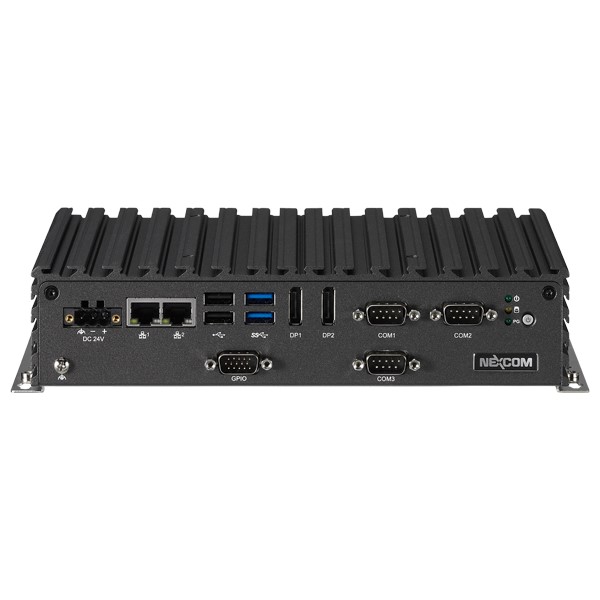

NISE-4300-6100U

NEXCOM
SKU: 56923800
Embedded Box System NISE4300 with Intel Core i3-6100 2.3GHz, up to 16GB DDR3L, 2xDP, 2xGbE LAN, 3xCOM, 2xUSB 3.0, 2xUSB 2.0, GPIO, 2.5" SATA Bay, M.2 2242 Key B/M, 24V DC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
CPU Support Type
Core i3, Core i5
Memory
Form-factor
DDR3L
ECC
No
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 10
Dimensions and weight
Width
259 mm
Height
60 mm
Depth
145 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.3 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
CPU Support Type
Core i3, Core i5
Memory
Form-factor
DDR3L
ECC
No
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 10
Dimensions and weight
Width
259 mm
Height
60 mm
Depth
145 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.3 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
CPU Support Type
Core i3, Core i5
Memory
Form-factor
DDR3L
ECC
No
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 10
Dimensions and weight
Width
259 mm
Height
60 mm
Depth
145 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.3 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
CPU Support Type
Core i3, Core i5
Memory
Form-factor
DDR3L
ECC
No
Maximum Memory
16 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB 2.0
2
USB v3.x
2
Digital Input-Output
GPIO
Yes
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
3xDB9, 2xRJ45 Ethernet, 4xUSB, 2xDisplayPort
System Power Input
Input Voltage DC
24..24 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 10
Dimensions and weight
Width
259 mm
Height
60 mm
Depth
145 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.8 kg
Gross Weight
2.3 kg

Documentation
NISE-4300-Datasheet-09042023.pdf NISE-4300-User-Manual-October-2023.pdf
Documentation
NISE-4300-Datasheet-09042023.pdf NISE-4300-User-Manual-October-2023.pdf
Documentation
NISE-4300-Datasheet-09042023.pdf NISE-4300-User-Manual-October-2023.pdf
Documentation
NISE-4300-Datasheet-09042023.pdf NISE-4300-User-Manual-October-2023.pdf
