NISE-4200Q-6442EQ

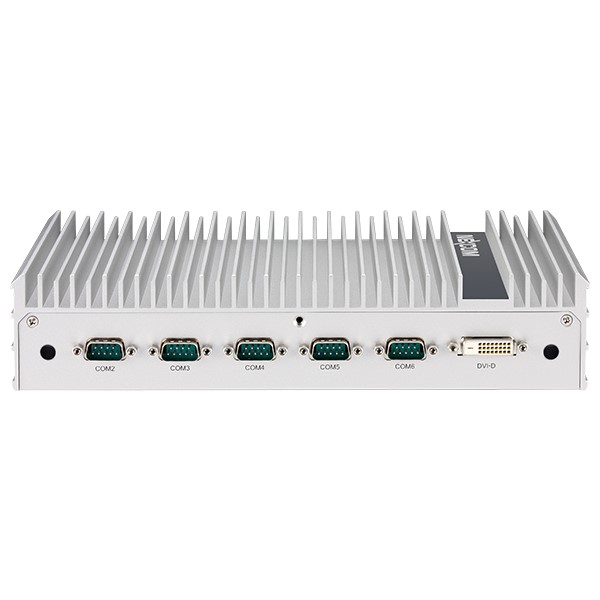

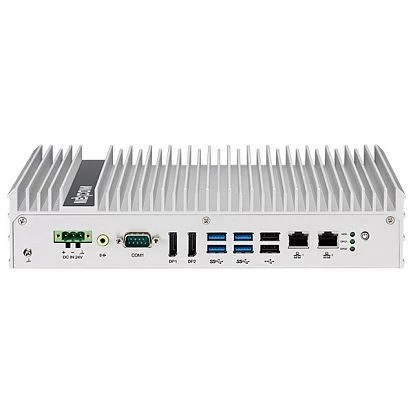

NISE-4200Q-6442EQ, Fanless Embedded Box PC with Intel Core i5-6442EQ, up to 32 GB DDR4 RAM, Dual LAN, 6xCOM, 2xMini Card, M.2 The NISE-4200Q-6442EQ is a compact, fanless embedded box PC that places its priorities on the unusually high performance of an Intel Core i3/i5 CPU from the 6th generation "Skylake", a DDR4 SO-DIMM RAM that can be expanded up to 32 GB and a high number of serial COM ports to create a high-performance interface in automation as an M2M and H2M interface. The standard configuration of the NISE-4200Q-6442EQ includes an Intel Core i5-6442EQ Quad Core CPU, which allows a clock frequency of up to 2.70 GHz with a low TDP of only 25 Watt. The processor enables a connection to the maximum 32 GB DDR4 RAM with a bandwidth of up to 34.1 GB/s and thus provides an excellent basis for data- and computationally-intensive applications. As a fanless embedded box PC, the NISE-4200Q-6442EQ also provides an above-average number of interfaces including dual LAN for Gigabit Ethernet, quad serial port in RS232 and double RS232/422/485 and 16 bit GPIO for networks and external hardware. This complements an extensive internal I/O including 2.5'' Drive Bay, two extension slots for PCIe Mini Card and M.2 expansion. The primary application of the NISE-4200Q-6442EQ is in the use for headless IoT servers and automation gateways, as a fanless embedded box PC with high performance and support for independent triple view it is also suitable for H2M, interactive digital signage or video surveillance with intelligent data analysis.

NISE-4200Q-6442EQ, Fanless Embedded Box PC with Intel Core i5-6442EQ, up to 32 GB DDR4 RAM, Dual LAN, 6xCOM, 2xMini Card, M.2 The NISE-4200Q-6442EQ is a compact, fanless embedded box PC that places its priorities on the unusually high performance of an Intel Core i3/i5 CPU from the 6th generation "Skylake", a DDR4 SO-DIMM RAM that can be expanded up to 32 GB and a high number of serial COM ports to create a high-performance interface in automation as an M2M and H2M interface. The standard configuration of the NISE-4200Q-6442EQ includes an Intel Core i5-6442EQ Quad Core CPU, which allows a clock frequency of up to 2.70 GHz with a low TDP of only 25 Watt. The processor enables a connection to the maximum 32 GB DDR4 RAM with a bandwidth of up to 34.1 GB/s and thus provides an excellent basis for data- and computationally-intensive applications. As a fanless embedded box PC, the NISE-4200Q-6442EQ also provides an above-average number of interfaces including dual LAN for Gigabit Ethernet, quad serial port in RS232 and double RS232/422/485 and 16 bit GPIO for networks and external hardware. This complements an extensive internal I/O including 2.5'' Drive Bay, two extension slots for PCIe Mini Card and M.2 expansion. The primary application of the NISE-4200Q-6442EQ is in the use for headless IoT servers and automation gateways, as a fanless embedded box PC with high performance and support for independent triple view it is also suitable for H2M, interactive digital signage or video surveillance with intelligent data analysis.
