NISE-3900P2E

NISE-3900P2E

NEXCOM
SKU: 57051200

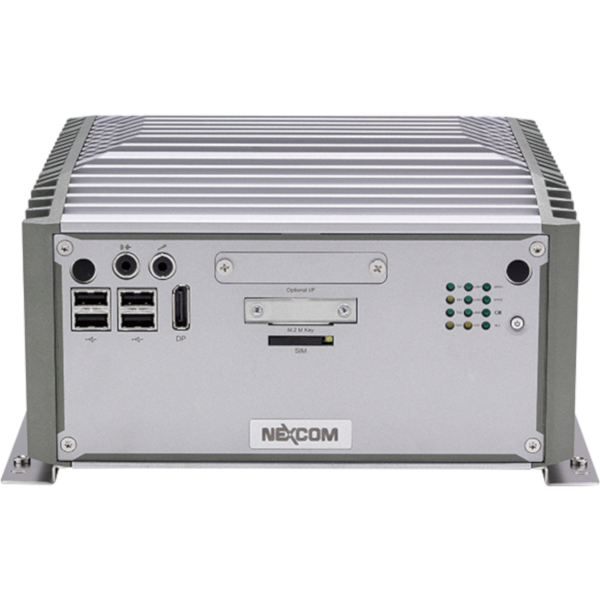

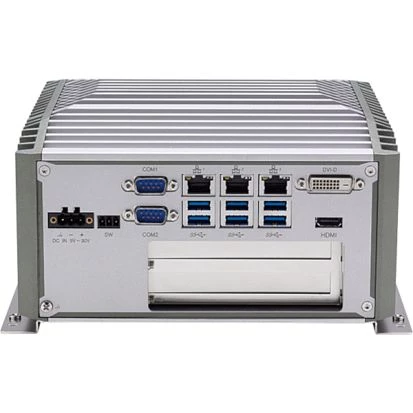

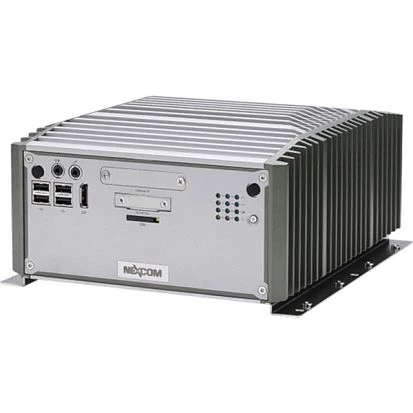

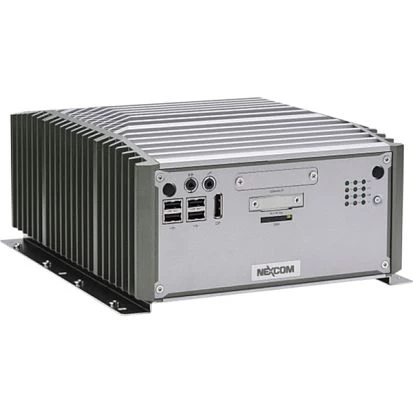

Fanless Box-PC NISE3900P2E, Support 9/8th Gen Intel Core i7/i5/i3 CPUs, Intel Q370 Chipset, up to 16GB DDR4, DP, DVI-D, HDMI, 3xGbit LAN, 4xUSB 2.0, 6xUSB 3.1, 4xCOM, Audio, 2.5" SATA HDD Bay, M.2, 1xMini-PCIe, 1xPCIe x4 / 1xPCI Slots, 9...30V DC-In
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
PCI
1
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
2xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 6xUSB, Line Out, DC Input, Display Port, SIM Card Slot, 4xUSB (4-pin), Audio Mic
System Power Input
Input Voltage DC
9..30 V
Power Consumption
120 W
Power Supply
Type of Power Supply
DC-DC, AT, ATX
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
215 mm
Height
115 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
HDD: Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, SSD & M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27, M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
PCI
1
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
2xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 6xUSB, Line Out, DC Input, Display Port, SIM Card Slot, 4xUSB (4-pin), Audio Mic
System Power Input
Input Voltage DC
9..30 V
Power Consumption
120 W
Power Supply
Type of Power Supply
DC-DC, AT, ATX
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
215 mm
Height
115 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
HDD: Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, SSD & M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27, M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
PCI
1
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
2xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 6xUSB, Line Out, DC Input, Display Port, SIM Card Slot, 4xUSB (4-pin), Audio Mic
System Power Input
Input Voltage DC
9..30 V
Power Consumption
120 W
Power Supply
Type of Power Supply
DC-DC, AT, ATX
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
215 mm
Height
115 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
HDD: Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, SSD & M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27, M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
Total Ethernet
3
10/100/1000 Mbit/s
3
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
10
USB 2.0
4
USB v3.x
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
PCI
1
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
3G
Connectors
Connectors
2xDB9, DVI-D, HDMI, 3xRJ45 Ethernet, 6xUSB, Line Out, DC Input, Display Port, SIM Card Slot, 4xUSB (4-pin), Audio Mic
System Power Input
Input Voltage DC
9..30 V
Power Consumption
120 W
Power Supply
Type of Power Supply
DC-DC, AT, ATX
Output Power
120 W
Software
Operating System Compatibility
Windows 10, Linux kernel 4.x
Dimensions and weight
Width
215 mm
Height
115 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
HDD: Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6, SSD & M.2: Random: 2Grms @ 5~500 Hz, IEC60068-2-64 / Sinusoidal: 2Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27, M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg

Documentation
NISE-3900E2/P2/P2E Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
NISE-3900E2/P2/P2E Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
NISE-3900E2/P2/P2E Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
Documentation
NISE-3900E2/P2/P2E Datasheet Quectel EG25 LTE Mini-PCIe, Driver v.2.2.4 for Windows
