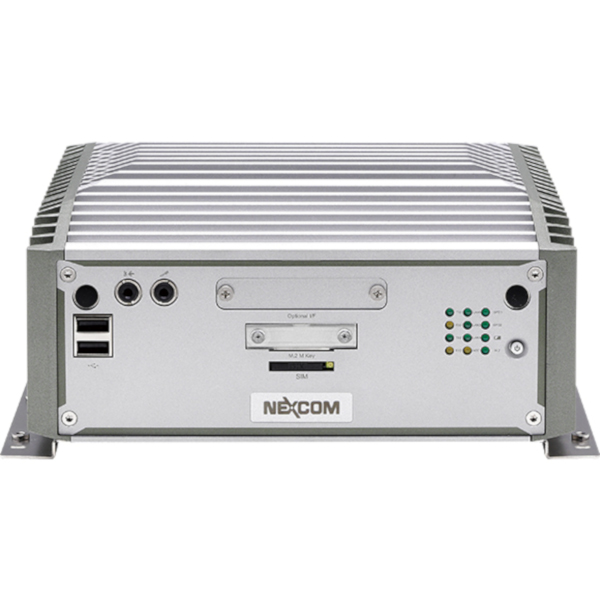

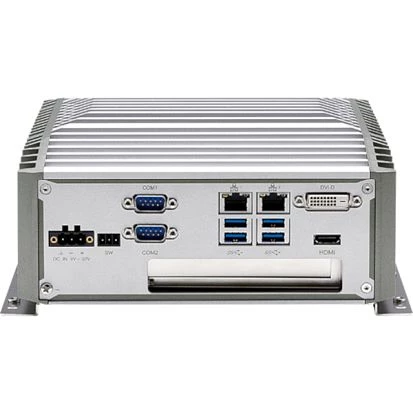

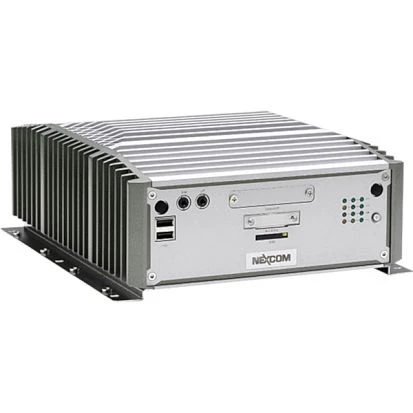

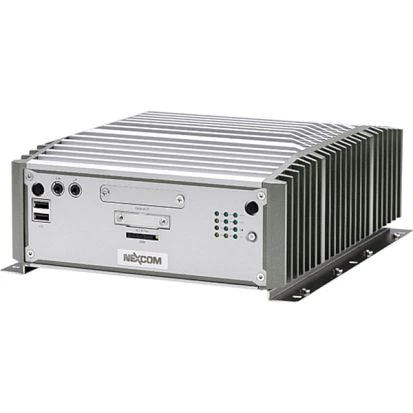

NISE-3900E-H310

NISE-3900E-H310

NEXCOM
SKU: 56935000
Fanless Box-PC NISE3900E-H310, Support 9/8th Gen Intel Core i7/i5/i3 CPUs, Intel H310 Chipset, up to 32 DDR4, DVI-D, HDMI, 2xGbit LAN, 4xUSB 2.0, 4xUSB 3.1, 4xCOM, Audio, 2.5" SATA HDD Bay, M.2, 1xMini-PCIe, 1xPCIe x4, 9...30V DC-In
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB 2.0
2
USB v3.x
10
Digital Input-Output
Channels of DIO
8
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors
4xDB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
215 mm
Height
94 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
6.35 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB 2.0
2
USB v3.x
10
Digital Input-Output
Channels of DIO
8
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors
4xDB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
215 mm
Height
94 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
6.35 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB 2.0
2
USB v3.x
10
Digital Input-Output
Channels of DIO
8
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors
4xDB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
215 mm
Height
94 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
6.35 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB 2.0
2
USB v3.x
10
Digital Input-Output
Channels of DIO
8
GPIO
4xDigital In / 4xDigital Out
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Connectors
Connectors
4xDB9, DVI-D, HDMI, 2xRJ45, 6xUSB, Display Port, SIM Card Slot, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10
Dimensions and weight
Width
215 mm
Height
94 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
HDD: 20G, half sine, 11ms, IEC60068-2-27 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
4.5 kg
Gross Weight
6.35 kg

Documentation
Datasheet NISE-3900E
Documentation
Datasheet NISE-3900E
Documentation
Datasheet NISE-3900E
Documentation
Datasheet NISE-3900E
