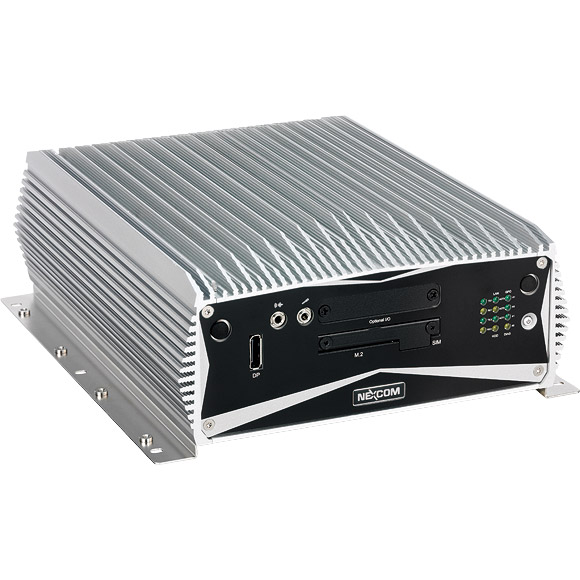

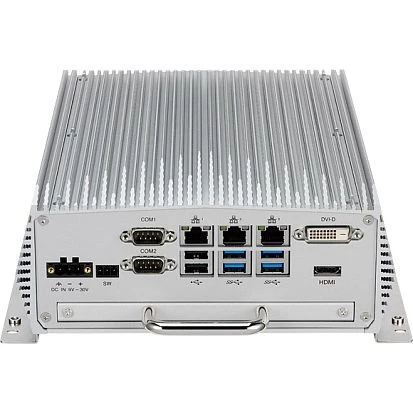

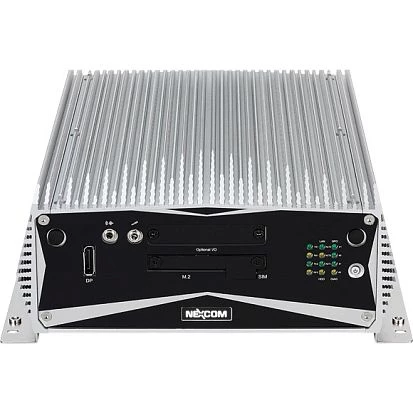

NISE-3800R
NEXCOM
SKU: 07611200
Fanless Box PC NISE3800R, Intel Core-i7/i5/i3 6th Gen. CPUs, up to 32GB DDR4 RAM, DVI,HDMI,DP, 3xGbit LAN, 2xUSB 2.0,4xUSB 3.0, 3xCOM, Audio, 2x2.5" SATA Bays for RAID 0/1, M.2 2242 support B-key SATA and M-Key, 2xMini-PCIe, 9..30V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
RAID Levels
1
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input, Display Port, SIM Card Slot
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
ATX
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
279 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
0.5Grms, 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
