NISE-3800P2

NISE-3800P2

NEXCOM
SKU: 56326400

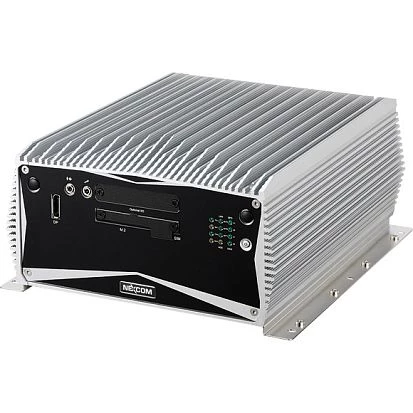

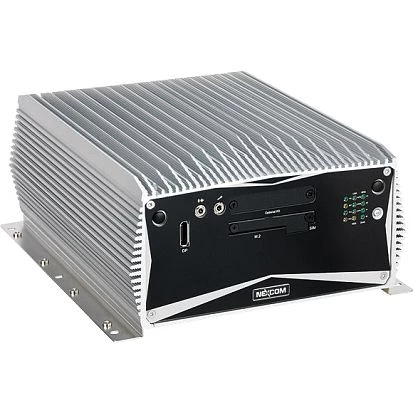

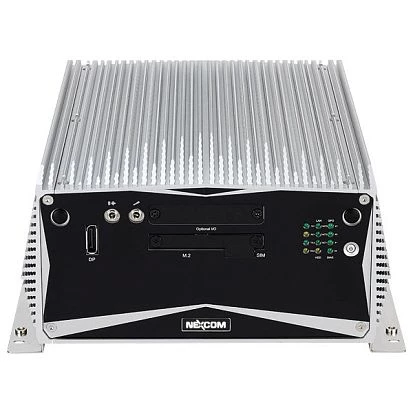

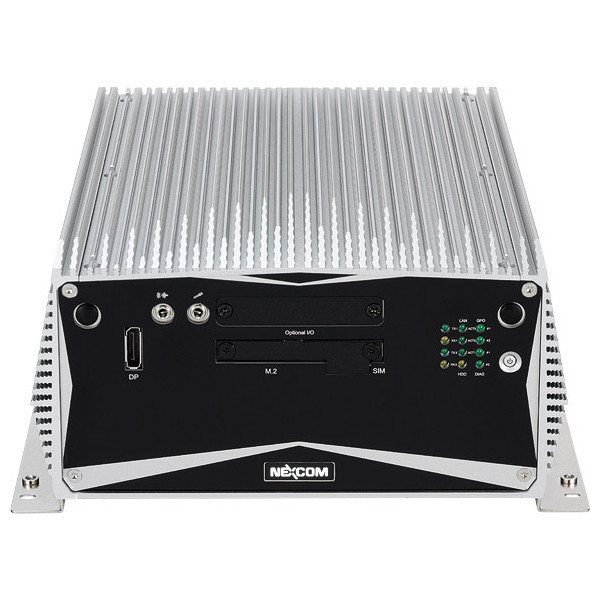

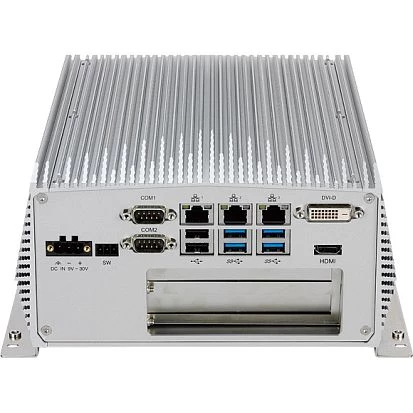

Fanless Box System NISE3800P2, Intel Core-i7/i5/i3 6th Gen. CPUs, up to 32GB DDR4 RAM, DVI-D, HDMI, DP, 3xGbit LAN, 2xUSB 2.0, 4xUSB 3.0, 2xCOM, Audio, 1x2.5" Drive Bay, 2xMini-PCIe, M.2 2242 support B-key SATA and M-Key, 2xPCI, 9..30 V DC-In
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
PCI
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
DVI, HDMI, 3xRJ45 Ethernet, 6xUSB, SIM Card Slot, 1xDP
System Power Input
Input Voltage DC
9..30 V
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
PCI
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
DVI, HDMI, 3xRJ45 Ethernet, 6xUSB, SIM Card Slot, 1xDP
System Power Input
Input Voltage DC
9..30 V
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
PCI
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
DVI, HDMI, 3xRJ45 Ethernet, 6xUSB, SIM Card Slot, 1xDP
System Power Input
Input Voltage DC
9..30 V
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Extension Slots
PCI
2
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 1
Connectors
Connectors
DVI, HDMI, 3xRJ45 Ethernet, 6xUSB, SIM Card Slot, 1xDP
System Power Input
Input Voltage DC
9..30 V
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg

Documentation
NISE-3800 Serie RS232/RS422/RS485_ports NISE-3800E2_P2_P2E-Datasheet-03272025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800 Serie RS232/RS422/RS485_ports NISE-3800E2_P2_P2E-Datasheet-03272025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800 Serie RS232/RS422/RS485_ports NISE-3800E2_P2_P2E-Datasheet-03272025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800 Serie RS232/RS422/RS485_ports NISE-3800E2_P2_P2E-Datasheet-03272025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
