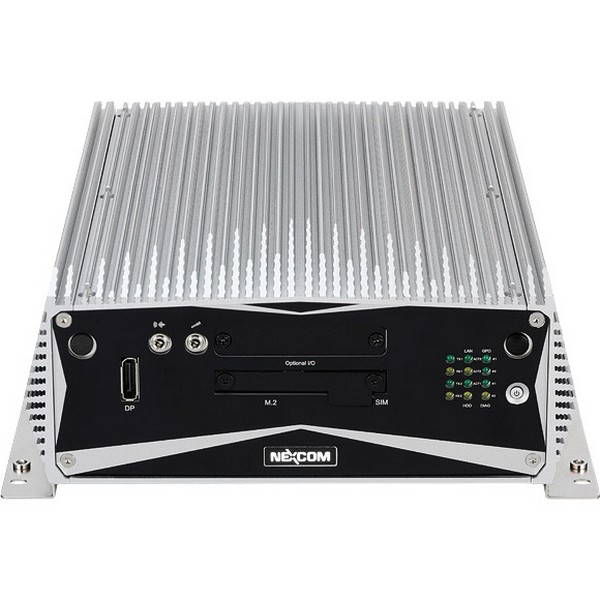

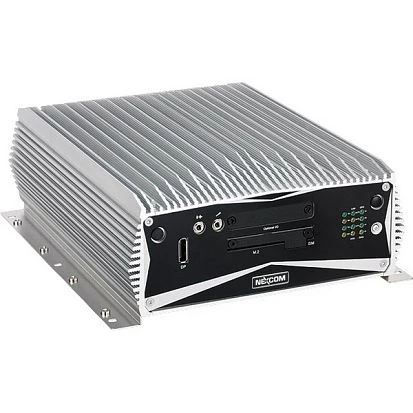

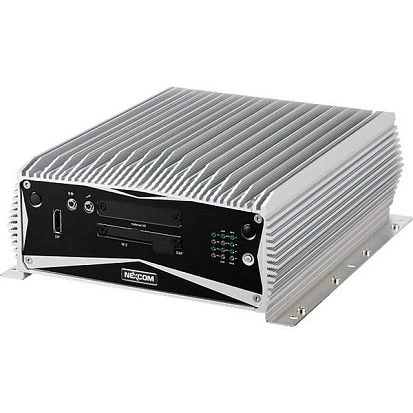

NISE-3800E
NEXCOM
SKU: 08326400
Fanless Box System NISE3800E, Intel Core-i7/i5/i3 6th Gen. CPUs, up to 16GB DDR4, DP/DVI-D/HDMI, 3xGbE LAN, 2xUSB 2.0, 4xUSB 3.0, 2xCOM, Audio, 2.5" SATA Bay, M.2 2242 support B-key SATA and M-Key, 1xMini-PCIe, 1xPCIe x4, 9...30V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
4
PCI Express x4
1
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors

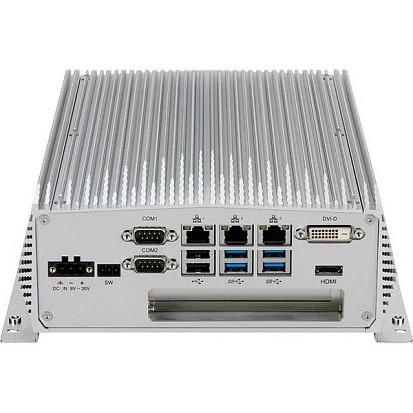

2xDB9, DVI-I, DVI-D, HDMI, 3xRJ45, 8xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
120 W
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz
Shock
HDD: 20G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Safety
UL
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
