Embedded Industrial Edge Computer

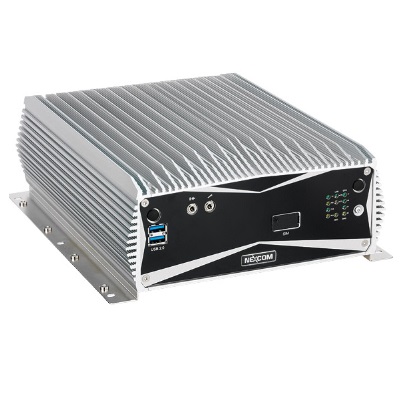

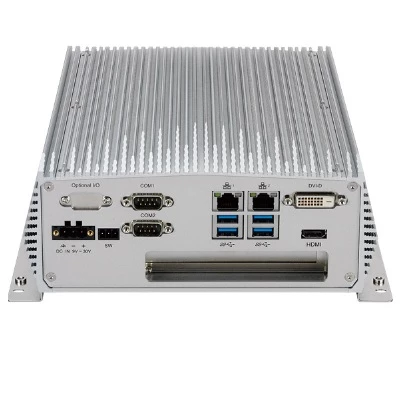

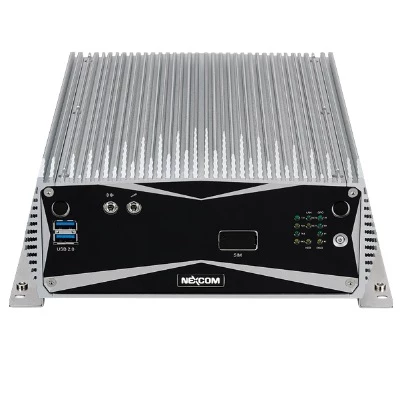

NISE-3800E-H110

NISE-3800E-H110

NEXCOM
SKU: 07615500
Fanless Box System NISE3800E-H110, Support 6th Skylake Intel Core-i7/i5/i3 CPUs, Intel H110 Chipset, up to 16GB DDR4 RAM, DVI-D, HDMI, 2xGbE LAN, 2xUSB 2.0, 4xUSB 3.0, 2xCOM, Audio, 2.5" SATA HDD Bay, 2xMini-PCIe, 1xPCIe x4, 9...30V DC-In
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
279 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
0.5Grms, 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
279 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
0.5Grms, 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
279 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
0.5Grms, 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Skylake, Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel H110
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Interfaces
DVI-D, HDMI
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
PCI Express x4
1
Mini-PCIe/Mini Card
2
SIM Card slots
1
Connectors
Connectors
2xDB9, DVI-D, HDMI, 6xUSB, Mic In, Line Out, DC Input
System Power Input
Input Voltage DC
9..30 V
Software
Operating System Compatibility
Windows 7, Windows 8.1, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
279 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
0.5Grms, 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg

Documentation
NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
Documentation
NISE-3800E-H110-Datasheet-03262025.pdf NISE-3800-Series-User-Manual-March-2025.pdf
