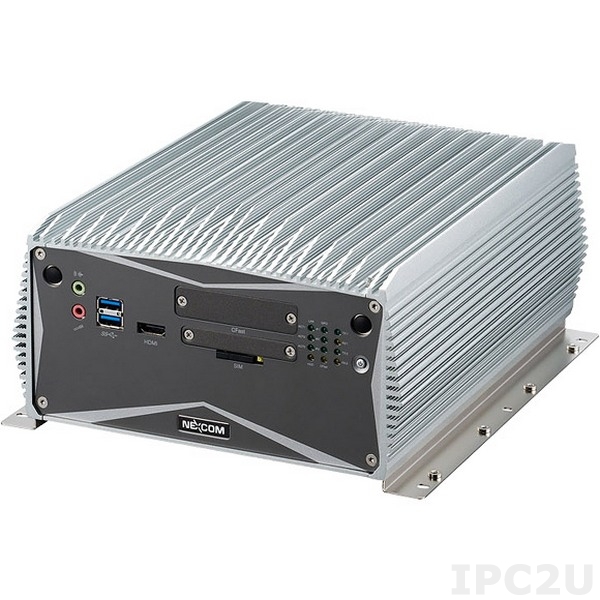

*EOL* Fanless Embedded Server, Support 4th Gen Intel Core i7/i5/i3 CPUs, Intel Q87 Chipset, up to 8GB DDR3L RAM, DVI, HDMI, 3xGbit LAN, 8xUSB, 2xCOM, CFast Socket, Audio, 1x2.5" SATA HDD Bay, 2xPCIex4, 9-30V DC-In
NISE-3700E2
NEXCOM
SKU: 55953000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Chipset
Chipset
Intel Q87
Memory
Form-factor
DDR3, DDR3L
Socket Type
2xSODIMM
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
Total Ethernet
3
10/100/1000 Mbit/s
3
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
256 GB
Extension Slots
Total
2
PCI Express x4
2
SIM Card slots
1
Connectors
Connectors

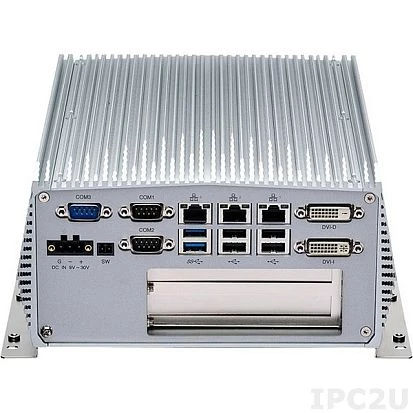

3xDB9, DVI-I, DVI-D, HDMI, 3xRJ45, 8xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9..30 V
Dimensions and weight
Width
215 mm
Height
114 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz
Shock
HDD: 20G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
5 kg
Gross Weight
6.4 kg
