IBS-600-H
SKU: 80016600
Fanless Embedded PC, Support Intel 14/13/12th Gen. Core i3/i5/i7/i9 CPU, Up to 64GB DDR5 RAM, DP/HDMI, 2xLAN, 4xUSB 3.2, 2xUSB 2.0, 2xCOM, GPIO, 1x2.5" Bay, 1xM.2 2280 Key-M, 1xM.2 3042 Key-B, 1xM.2 2230 Key-E, Audio, 9-36VDC-in (12VDC-in Opt.)
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
CPU Support Type
Core i3, Core i5, Core i7, Core i9
Chipset
Chipset
Intel H610
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i225V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3042 B
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors

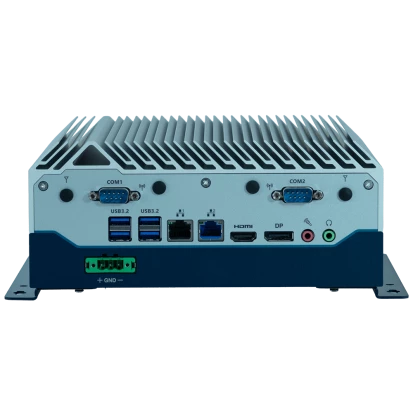

2xDB9, HDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, Display Port, DC input (terminal block), DB9 GPIO
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
209 mm
Height
87 mm
Depth
209 mm
Operating Conditions
Operating Temperature
-20..50 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Net Weight
3.3 kg
Gross Weight
5 kg
