NISE-3700E

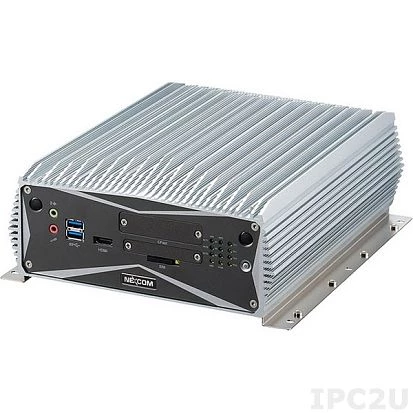

NISE-3700E

NEXCOM
SKU: 55932500
*EOL* Fanless Embedded Server, Support 4th Gen Intel Core i7/i5/i3 CPUs, Intel Q87 Chipset, up to 8GB DDR3L RAM, DVI, HDMI, 3xGbit LAN, 8xUSB, 3xCOM, CFast Socket, Audio, 1x2.5" SATA HDD Bay, 1xPCIex4, 9-30V DC-In
End-of-life product

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR3, DDR3L
Maximum Memory
8 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-AT
10/100/1000 Mbit/s
3
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
8
USB 2.0
4
USB v3.x
4
Drive interfaces
mSATA
1
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Installed drive
1st Storage Capacity
64 GB
Extension Slots
Total
1
SIM Card slots
1
Connectors
Connectors

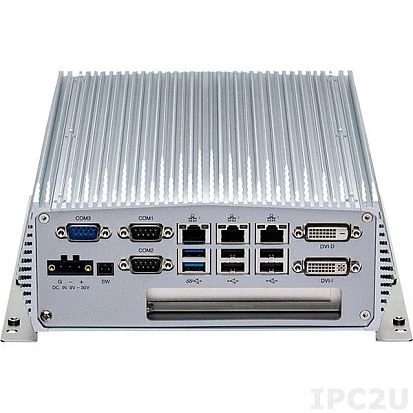

2xDB9, DVI-I, DVI-D, HDMI, 3xRJ45, 8xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
9 V
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz
Shock
HDD: 20G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.5 kg
Gross Weight
5.9 kg

Documentation
NISE-3700E-Datasheet-12062016.pdf NISE-3700E-User-Manual-July-2016.pdf
