NISE-3600CP2

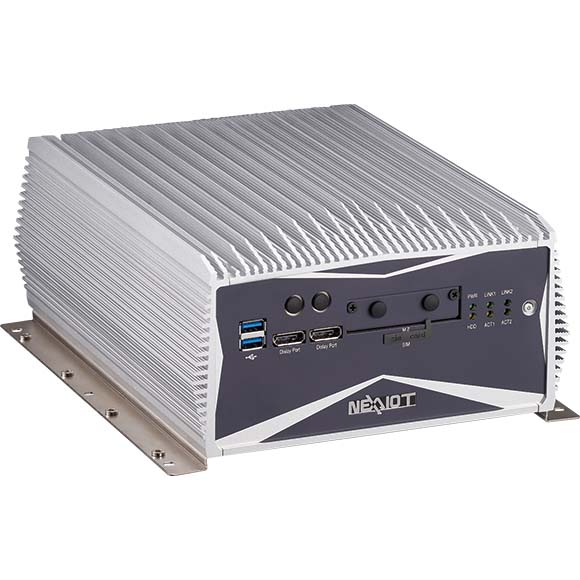

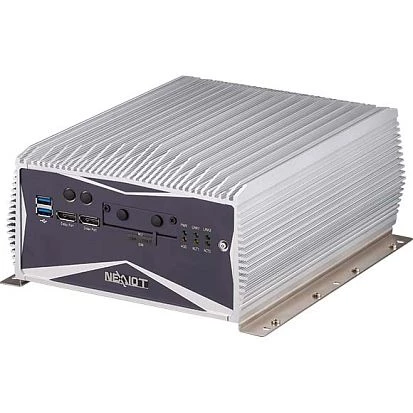

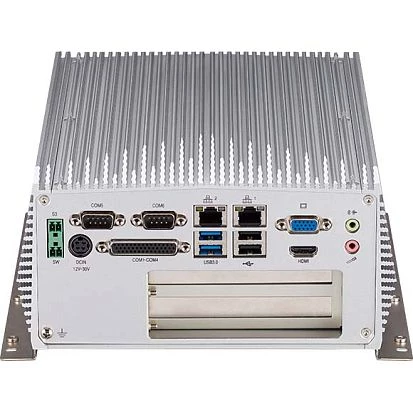

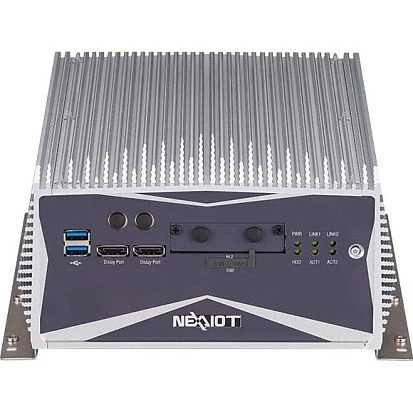

NISE-3600CP2 Embedded Box PC uses Intel Core i3/i5/i7, up to 16 GB DDR4 RAM, M.2, Mini Card, 2xPCI, 2xLAN, 6xCOM, 6xUSB As a fanless embedded box PC, the NISE-3600CP2 offers excellent scalability through compatibility with Intel Core i3/i5/i7 processors of the 6th to 9th generation, which is complemented by a rich I/O including six Serial COM ports, GbE Dual LAN and further individualization of the interfaces via two expansion slots in PCI. A special feature of the NISE-3600CP2 is its support for processors from several generations, ranging from an Intel Core i3 Dual Core to an Intel Core i7 Octa Core CPU, which is exceptionally extensive for an embedded box PC. In combination with a DDR4 RAM expandable to 16 GB as main memory, it forms an unusually versatile and scalable platform. As interfaces for peripheral devices, the NISE-3600CP2 provides, among others, six USB ports, an external M.2 slot, VGA, HDMI and two DB9 Serial COM RS232/422/485 ports as well as four additional COM RS232 via an included DB44 adapter cable. The connection to the network is either redundant via Dual LAN with Gigabit Ethernet or via optional WiFi 802.11 or WWAN with a SIM slot. Cooling is fanless due to the chassis design with external cooling fins on the surface. Typical tasks for the NISE-3600CP2 embedded box PC include industrial production, technical monitoring, for example at measuring stations, or the use as a powerful transportation and in-vehicle PC.
