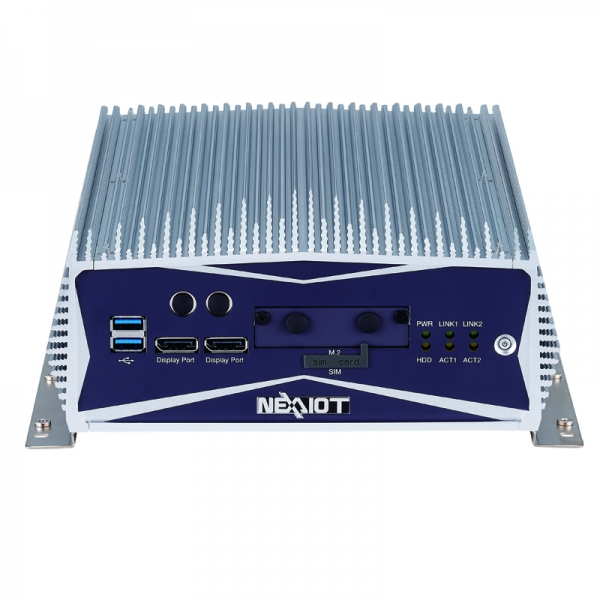

NISE-3600CE2

NISE-3600CE2

NEXCOM
SKU: 57351700
Fanless Embedded Box- PC NISE3600CE2, support 6,7,8,9th gen. Intel Core i3/i5/i7 CPU, up to 16GB DDR4 RAM, VGA/DVI-D/2xDP, 2xGbE LAN, 6xUSB, 6xCOM, 2.5" SATA HDD Bay, mSATA, M.2 3042 B-key, 2xPCIe x4, 12..30V DC-In
Price on request
Available
Available

Power Adapter
Price with VAT
Price on request
Power Adapter
Price with VAT
Price on request

Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
ATX, 2xDB9, DB44, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
12..30 V
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..50 °C
Vibration
Vibration protection with HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-2 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.74 kg
Gross Weight
7.42 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
ATX, 2xDB9, DB44, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
12..30 V
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..50 °C
Vibration
Vibration protection with HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-2 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.74 kg
Gross Weight
7.42 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
ATX, 2xDB9, DB44, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
12..30 V
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..50 °C
Vibration
Vibration protection with HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-2 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.74 kg
Gross Weight
7.42 kg
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Desktop
CPU
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel H310
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
6
RS-232
5
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
3
PCI Express x4
2
M.2
1
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Connectors
Connectors
ATX, 2xDB9, DB44, DB15 VGA, HDMI, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort
System Power Input
Input Voltage DC
12..30 V
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
215 mm
Height
93 mm
Depth
272 mm
Operating Conditions
Operating Temperature
-5..50 °C
Vibration
Vibration protection with HDD condition: - Random: 0.5Grms @ 5~500 Hz, IEC60068-2-64 - Sinusoidal: 0.5Grms @ 5~500 Hz, IEC60068-2-6
Shock
Shock protection: - HDD: 20G, half sine, 11ms, IEC60068-2-2 - M.2: 50G, half sine, 11ms, IEC60068-2-27
Standards and Certifications
Certifications
CE, CISPR 22 Class A, FCC Class A
EMS
EN 61000-6-2, EN 61000-6-4
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
5.74 kg
Gross Weight
7.42 kg

Documentation
NISE-3600C Series Datasheet NISE-3600C User Manual
Documentation
NISE-3600C Series Datasheet NISE-3600C User Manual
Documentation
NISE-3600C Series Datasheet NISE-3600C User Manual
Documentation
NISE-3600C Series Datasheet NISE-3600C User Manual
