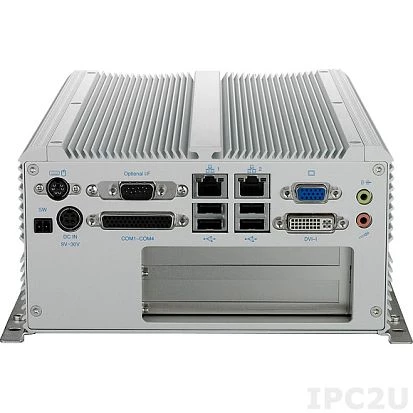

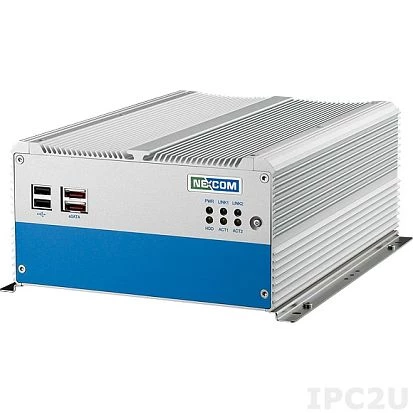

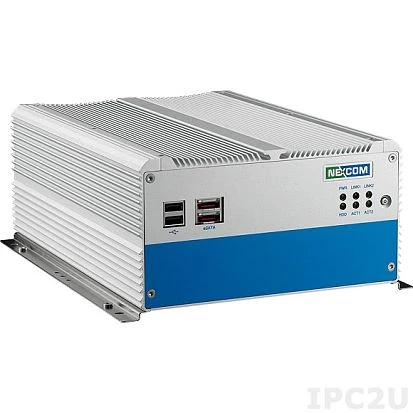

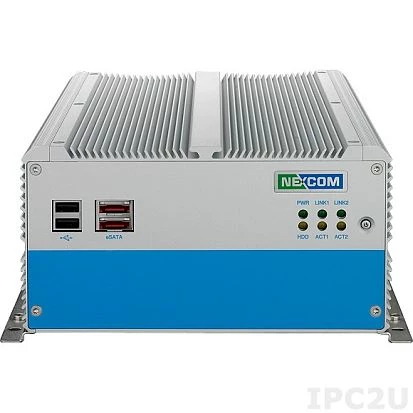

NISE-3500P2

NISE-3500P2

NEXCOM
SKU: 05583100
*EOL* 4pcs Stock * Fanless Embedded Server, Support Intel Core i7/i5, Intel QM57 Chipset, up to 4GB DDR3 RAM, w/VGA, DVI-I, 2xLAN, 6xUSB, 2xeSATA, Audio, DB44(4xCOM), 2xPCI slot(max 169mm w/2.5"HDD),PS/2, 4xDIO, 9..30V DC-In
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
CPU Support Type
Core i5, Celeron, Core i7
Chipset
Chipset
Intel QM57
Memory
Form-factor
DDR3
Socket Type
2xDIMM
ECC
No
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
5
RS-232
4
RS-232/422/485
1
USB Total
6
USB 2.0
6
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
PCI
2
Connectors
Connectors
DB9, DB44, DVI-I, DB15 VGA, PS/2 Keyboard/Mouse, 2xRJ45, 6xUSB, Mic In, Line Out, DC Input, 2xeSATA
System Power Input
Input Voltage DC
9..30 V
Dimensions and weight
Width
195 mm
Height
101 mm
Depth
268 mm
Operating Conditions
Operating Temperature
-5..55 °C
Vibration
Random: 0.5Grms @ 5~500 Hz
Shock
HDD: 20G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class B
Safety
UL/cUL
Automotive
e13 Mark
Dimensions
Gross Weight
5.97 kg
Construction
