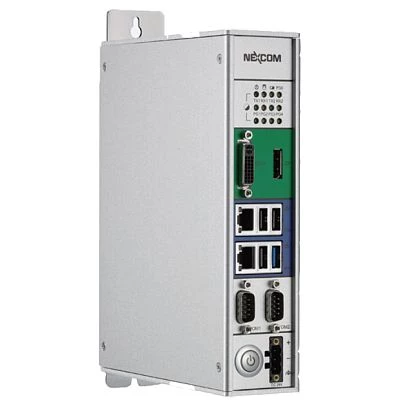

NIFE-200S
NEXCOM
SKU: 56852200
Industrial Fanless Embedded System NIFE-200S, Intel Celeron Quad Core J1900 2GHz CPU, up to 8GB DDR3L, DVI-I, DP, 2xGbE LAN, 4xUSB, 2xRS232/422/485, mSATA, SD Card Slot, 2x Mini-PCIe, 24V DC Input
End-of-life product
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Wall
CPU
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Graphic
Interfaces
DisplayPort, DVI-I
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
SD Slots
1
Extension Slots
SIM Card slots
1
LED / Controls
LED
1xHDD LED, Battеry Status, Power LED, COM-ports LED
Connectors
Connectors
2xDB9, DVI-I, 2xRJ45, 4xUSB, DC Input, Display Port
System Power Input
Input Voltage DC
24 V
Dimensions and weight
Width
50 mm
Height
205 mm
Depth
157 mm
Operating Conditions
Operating Temperature
-5..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.6 kg
Gross Weight
1.6 kg
