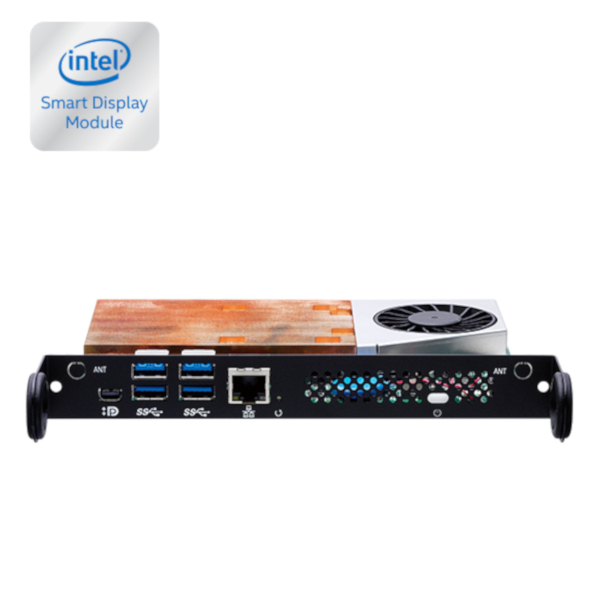

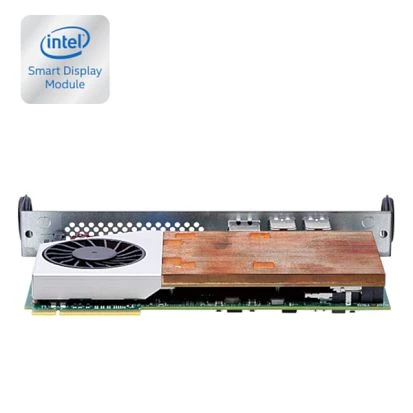

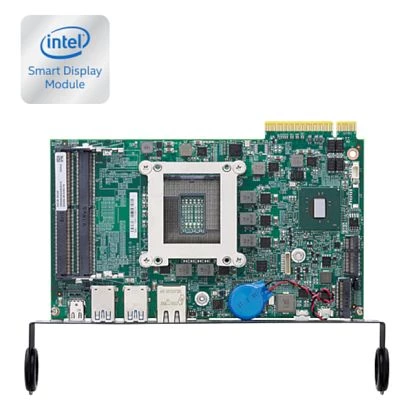

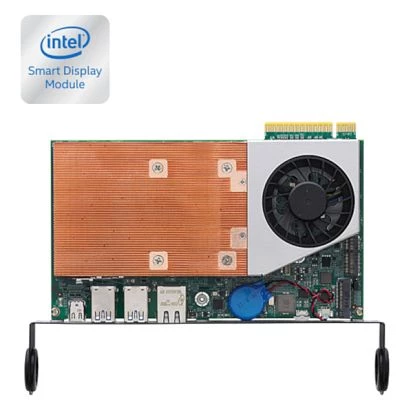

NDiS-S538
NEXCOM
SKU: 08401900
Network Digital Signage Player, Socket LGA1151 for Intel Skylake-S CPU 35W, Intel Q170, DDR4, MiniDP, HDMI 1.4, DP 1.2, 1xGbE LAN, 1xCOM, 4xUSB 3.0, 2xI2C, 1xGSPI, 1x PCIe, 1x M.2 2280 (PCIe x4+SATA), 1x M.2 2230, 12VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x8
1
M.2
1
Connectors
Connectors
HDMI, RJ45 Ethernet, DC Input, Display Port, 1xMini DisplayPort, PCIe x8 (SDM)
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
20 mm
Height
175 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x8
1
M.2
1
Connectors
Connectors
HDMI, RJ45 Ethernet, DC Input, Display Port, 1xMini DisplayPort, PCIe x8 (SDM)
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
20 mm
Height
175 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x8
1
M.2
1
Connectors
Connectors
HDMI, RJ45 Ethernet, DC Input, Display Port, 1xMini DisplayPort, PCIe x8 (SDM)
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
20 mm
Height
175 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded, Panel
CPU
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Audio
Audio Controller
Intel HD Audio
Extension Slots
PCI Express x8
1
M.2
1
Connectors
Connectors
HDMI, RJ45 Ethernet, DC Input, Display Port, 1xMini DisplayPort, PCIe x8 (SDM)
System Power Input
Input Voltage DC
12..12 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
20 mm
Height
175 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..55 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
