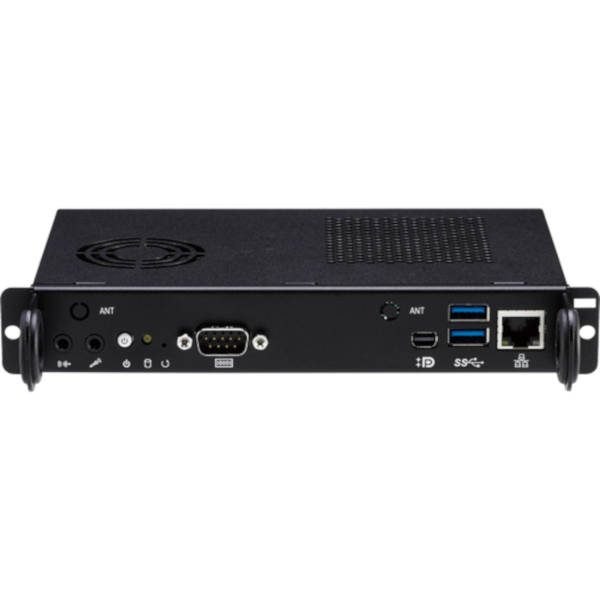

NDiS-M537
NEXCOM
SKU: 56879000
OPS Digital Signage Platform, Intel 6th/7th Gen, up to 32GB DDR4 2133/2400, Gigabit LAN, Mini DP++, 6xUSB , TMDS, Audio, M.2 2242 SSD, PCIex4, 12...19V DC-In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Type
Fan
CPU
СPU Generation/Family
Skylake, Kaby Lake
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Core i7
Chipset
Chipset
Intel Q170
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
16 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
3
USB Total
4
USB 2.0
2
USB v3.x
2
Extension Slots
PCI Express x4
1
M.2
2
Mini-PCI
1
Connectors
Connectors
RJ45 Ethernet, 2xUSB, Mic In, Line Out, Display Port, 1xMini DisplayPort
System Power Input
Input Voltage DC
12..19 V
Dimensions and weight
Width
200 mm
Height
30 mm
Depth
119 mm
Operating Conditions
Operating Temperature
0..45 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
