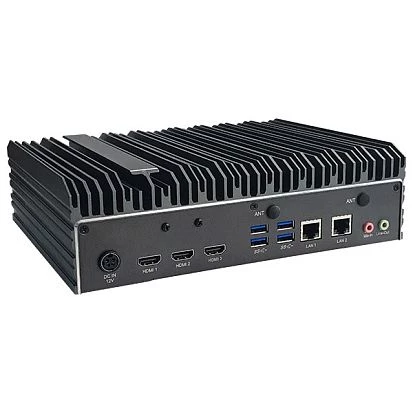

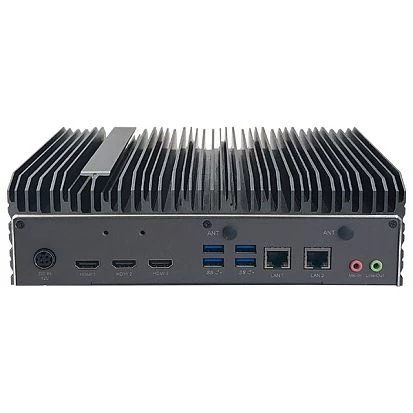

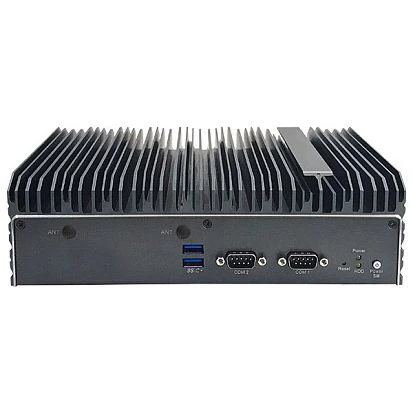

NDiS-B560-Q
NEXCOM
SKU: 57893500
Fanless Edge Embedded System, Intel 8/9th Gen Core i3/i5/i7 CPU, Q370 Chipset, up to 32GB DDR4 RAM, 3xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 6xUSB 3.0, 1x8-bit GPIO, Audio, SIM, 1x2.5" Drive Bay, 1xM.2 2230, 1xM.2 3052/3042, 12VDC-in w/ PSU, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Panel
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
Chipset
Chipset
Intel Q370
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics 630
Interfaces
3xHDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232
3
RS-232/422/485
1
USB Total
6
USB v3.x
6
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2280 M, 2230 E, 3052 B, 3042 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off
Connectors
Connectors
4xDB9, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, SIM Card Slot, 4-pin DC input, 3xHDMI
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
96 W
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
238 mm
Height
67.29 mm
Depth
192 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.3 kg
Gross Weight
5 kg
