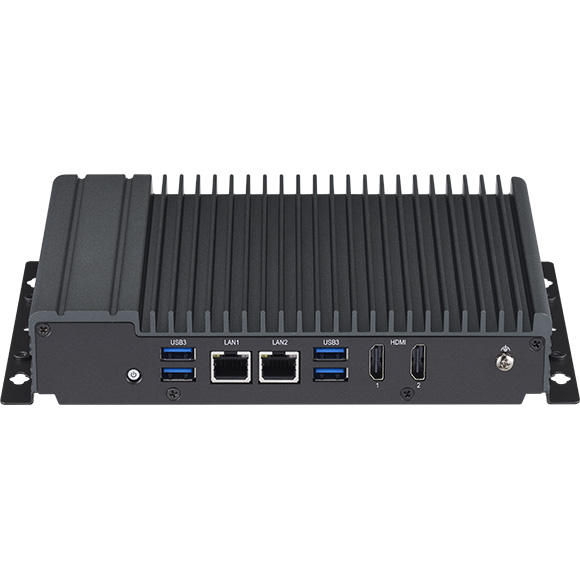

NDiS-B339-X7433
NEXCOM
SKU: 80101600
Slim Visual Edge System, Intel Atom x7433RE CPU, Up to 16GB DDR4 RAM, 2xHDMI, 2x2.5GbE LAN, 2xCOM, 4xUSB 3.2, 3xUSB 2.0, 8-bit GPIO, SATA, 1xM.2 2242 Key-M, Audio, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Portable, Wall
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7433RE
Socket
FCBGA1264
Max CPU frequency
3.4 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
7
USB 2.0
3
USB v3.x
4
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2242 M
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
224 mm
Height
39.8 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, en55032, en55035
Safety
EN 62368-1 (LVD)
Dimensions
Net Weight
1.4 kg
Gross Weight
2 kg
