NDiS-B327
NEXCOM
SKU: 08503700

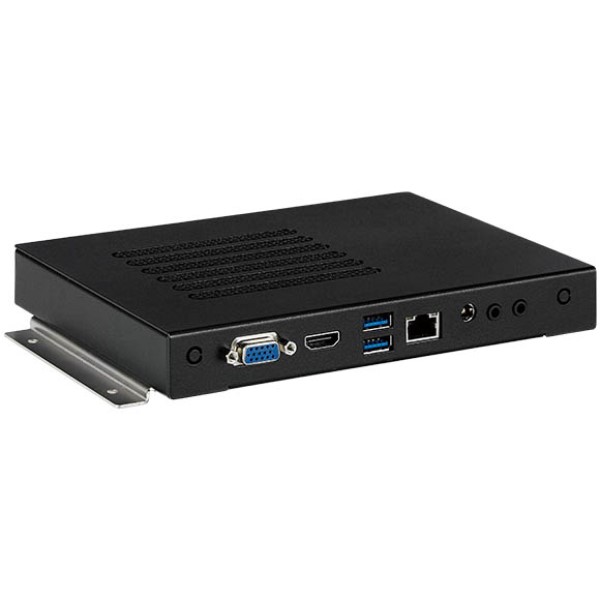

OPS Digital Signage Platform, Intel Celeron N3060 1.6GHz, up to 8GB DDR3L, VGA, HDMI, Gbit LAN, COM, 4xUSB 3.0, 2xUSB 2.0, 2.5" SATA SSD Bay, Mini-PCIe, M.2 2242, Audio, 19V DC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
CPU
Processor Installed
Intel Celeron N3060
Max CPU frequency
2.48 GHz
Memory
Form-factor
DDR3L
Socket Type
2xSODIMM
ECC
No
Maximum Memory
8 GB
Graphic
Graphic Controller
Intel HD Graphics 400
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
1
RS-232
1
USB Total
6
USB v3.x
4
Extension Slots
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 6xUSB, Mic In, Line Out
System Power Input
Input Voltage DC
19..19 V
Software
Operating System Compatibility
Windows 7, Windows 10
Dimensions and weight
Width
25 mm
Height
190 mm
Depth
149 mm
Operating Conditions
Operating Temperature
0..40 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.8 kg
Gross Weight
2.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
