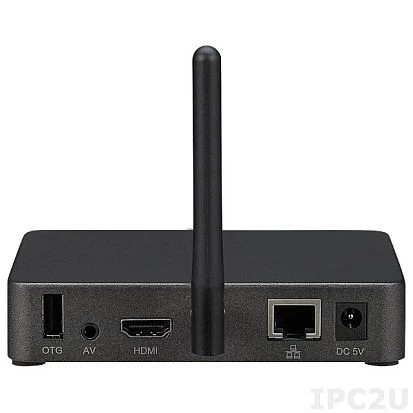

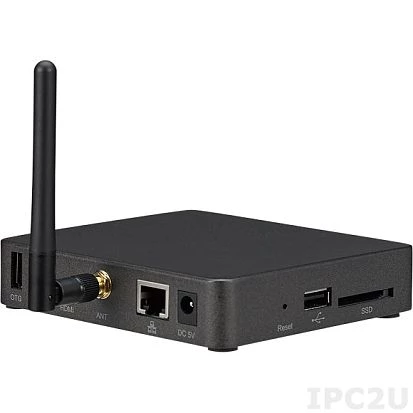

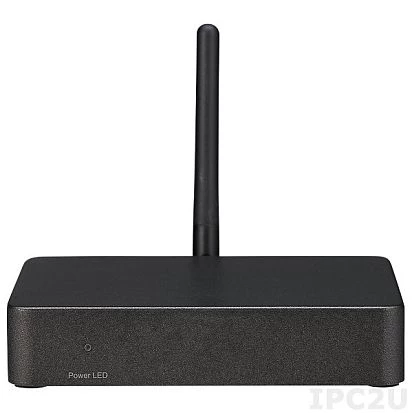

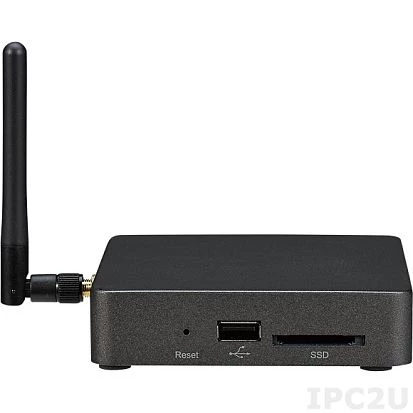

Fanless Digital Signage Player, Rockchip RK3288 ARM Cortex-A17 Quad core CPU, 2GB DDR3 RAM on-board, 16GB eMMC Flash, HDMI, 1xGbit LAN, 2xUSB, 802.11 b/g/n, Bluetooth, SD card socket, Audio, 5V DC-In
NDiS-B115
NEXCOM
SKU: 56154500
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Cortex®-A17 Quad core
Max CPU frequency
1.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
2
Drive interfaces
SD Slots
1
Installed drive
1st Storage Capacity
64 GB
Connectors
Connectors
HDMI, RJ45, 2xUSB, Line Out, SIM Card Slot
System Power Input
Input Voltage DC
0..5 V
Power Supply
Type of Power Supply
AC-AC
Output Power
15 W
Software
Operating System Installed
Android
Dimensions and weight
Width
118 mm
Height
24 mm
Depth
101 mm
Operating Conditions
Operating Temperature
-10..50 °C
Dimensions
Net Weight
0.65 kg
Gross Weight
1.5 kg
