nanoX-BT-J1900-2G

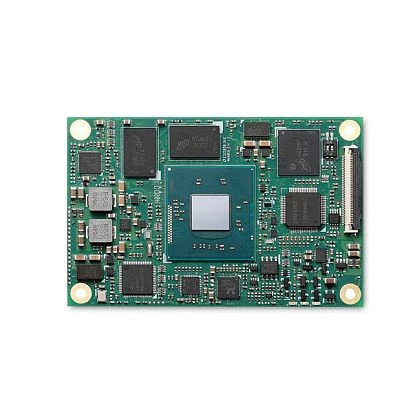

nanoX-BT-J1900-2G

ADLink
SKU: 10732300
Mini COM Express Type10 with Intel Celeron J1900, 2GB DDR3L, DDI, LVDS, eDP, 2.5GbE, 2xUSB 3.0, 6xUSB 2.0, 2xSATA 6GB/s, 4xPCIe x1, Audio, 12VDC-in
Price on request
Available
Available

System Architecture
Form Factor
COM Express Mini
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron J1900
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Maximum Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, DDI, eDP
Ethernet
Controller Type
Intel i210-LM
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
5
USB 2.0
4
USB v3.x
1
Drive interfaces
SATA 3
2
Software
Operating System Compatibility
Windows 7, Windows 8, Linux OS, Windows 10
Dimensions and weight
Width
84 mm
Length
55 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Dimensions
Net Weight
0.7 kg
Gross Weight
1.1 kg
