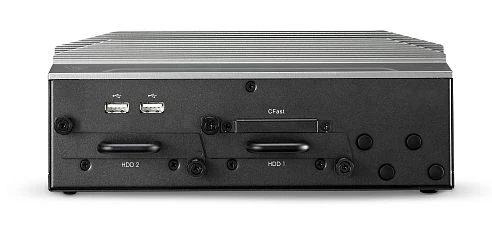

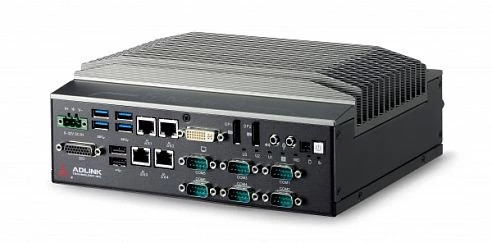

MXE-5502

MXE-5502

ADLink
SKU: 07268300
Intel Core i5-6440EQ fanless embedded controller with Intel QM170 Chipset, 4GB DDR4, 2xDisplayPort, 1xDVI-I, 4xGbE, 4xUSB 3.0, 4xUSB 2.0, 2xSATA, 2x mPCIe+USIM, 1xM.2, + 2xGbE, 2 USB 2.0, 6xCOM, 9-32VDC input
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Desktop, Wall
Type
Fanless
CPU
Processor Installed
Intel Core i5-6440EQ
Max CPU frequency
3.4 GHz
Memory
Form-factor
DDR4
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i210-IT, Intel i219-LM
10/100/1000 Mbit/s
4
Interfaces
COM Total
6
RS-232/422/485
4
USB Total
8
USB 2.0
4
USB v3.x
4
Digital Input-Output
Isolation DIO
Yes
GPIO
8xDigital In / 8xDigital Out
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
3
M.2
1
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
6xDB9, DVI-I, 4xRJ45 Ethernet, 8xUSB, Mic In, Line Out, 2xDisplayPort, DC input (terminal block), DB25 Female DIO, CFast slot
System Power Input
Input Voltage DC
9 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
160 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Linux OS, Windows 10
Dimensions and weight
Width
230 mm
Height
90 mm
Depth
204 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5Grms, 5-500 Hz, 3 axes w/ SSD
Shock
100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
LVD, UL
Dimensions
Gross Weight
3 kg
