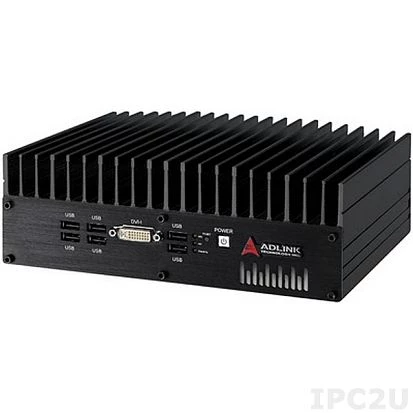

MXE-5104M/M4G

MXE-5104M/M4G

ADLink
SKU: 06099600
Intel Core 2 Duo P8400 2.26GHz fanless embedded controller with Intel GM45Chipset, 4GB DDR3 SODIMM, 4xCOM, 4xGbE, 6xUSB, 9-24 VDC input
Price on request
Available
Available

Construction
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Core 2 Duo P8400
Socket
CPU onboard
Max CPU frequency
2.26 GHz
Memory
Form-factor
DDR3
Default on Board Memory
4 GB
Maximum Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in Chipset
Ethernet
Controller Type
Intel 82574L 10/100/1000 Mbps, Realtek 8111C
10/100/1000 Mbit/s
4
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
6
USB 2.0
6
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xDB9, DVI-I, 4xRJ45 Ethernet, 6xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
24 V
Software
Operating System Compatibility
Windows XP, Windows 7, Linux OS
Dimensions and weight
Width
248 mm
Height
85 mm
Depth
185 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
CF/SSD: Operating, 5 Grms, 5-500 Hz, 3 axes
Shock
CF/SSD: Operating, 50 G, half sine 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Marine grade
IEC 60945 4th
Dimensions
Gross Weight
3 kg
