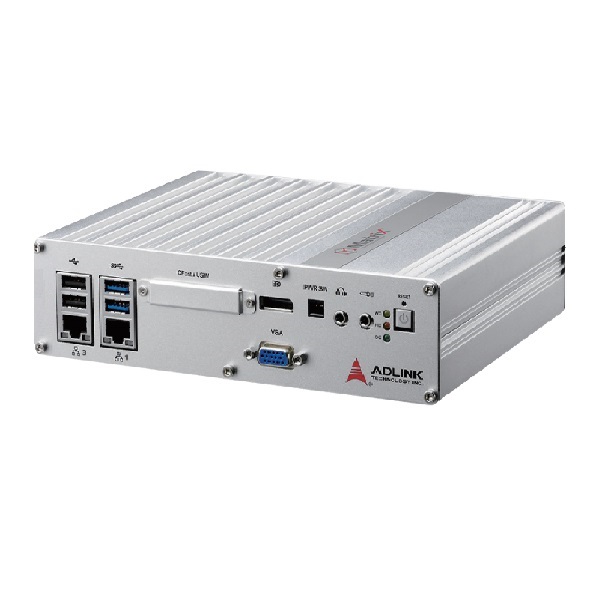

MXE-1501

MXE-1501

ADLink
SKU: 07951700
Intel Celeron QC N3160 fanless embedded controller with 2 GB SODIMM DDR3L RAM, DP, VGA, 3x GbE, 4x COM, 7x USB, 4x DI/DO, 1x 2.5"SATA, 1x USIM, 1x CFast, 1x mPCIe, Audio, 0...+50C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Celeron N3160
Socket
CPU onboard
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
2
USB v3.x
5
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 7xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
6 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS, Windows 7 Professional, Windows 10 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
170 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz, 3 axes w/SSD
Shock
Operating 100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL
Dimensions
Net Weight
1.5 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Celeron N3160
Socket
CPU onboard
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
2
USB v3.x
5
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 7xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
6 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS, Windows 7 Professional, Windows 10 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
170 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz, 3 axes w/SSD
Shock
Operating 100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL
Dimensions
Net Weight
1.5 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Celeron N3160
Socket
CPU onboard
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
2
USB v3.x
5
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 7xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
6 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS, Windows 7 Professional, Windows 10 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
170 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz, 3 axes w/SSD
Shock
Operating 100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL
Dimensions
Net Weight
1.5 kg
Gross Weight
2.7 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Intel Celeron N3160
Socket
CPU onboard
Max CPU frequency
2.24 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
3
Interfaces
COM Total
4
RS-232/422/485
2
USB Total
7
USB 2.0
2
USB v3.x
5
Digital Input-Output
Channels of DIO
8
Isolation DIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB15 VGA, 3xRJ45 Ethernet, 7xUSB, Mic In, Line Out, Display Port
System Power Input
Input Voltage DC
6 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Output Power
90 W
Software
Operating System Compatibility
Windows Embedded Standard 7, Linux OS, Windows 7 Professional, Windows 10 IoT Enterprise
Dimensions and weight
Width
210 mm
Height
170 mm
Depth
53 mm
Operating Conditions
Operating Temperature
0..50 °C
Vibration
5 Grms, 5-500 Hz, 3 axes w/SSD
Shock
Operating 100G, half sine 11 ms duration w/ SDD
Standards and Certifications
Certifications
CE, FCC Class A
Safety
UL
Dimensions
Net Weight
1.5 kg
Gross Weight
2.7 kg

Documentation
Datasheet MXE-1500
Documentation
Datasheet MXE-1500
Documentation
Datasheet MXE-1500
Documentation
Datasheet MXE-1500
